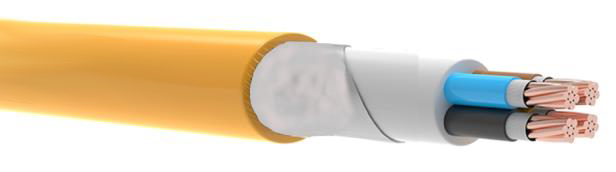

YXZ4Z1 FE 180 / N2XBH FE 180

YXZ4Z1 FE 180 / N2XBH FE 180

YXZ4Z1 FE 180 / N2XBH FE 180

Category:

tds
Code
N2XBH  FE 180 , YXZ4Z1  FE 180                      CU/MICA/XLPE/STA/HFFR
N2XB(a)H  FE 180 , YXZ4(a)Z1  FE180            CU/MICA/XLPE/ATA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
IEC 60331-21 Circuit Integrity
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Separator
Mica Tape
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
Double Steel Tape (Double Aluminium Tape for one core cables)
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
These are cables with low dielectric losses used in energy networks in refineries, mines, hotels, schools, tunnels high constructions
hospitals, power plant, data processing centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×4* 10,2 202,2 1000 4,61 55 47
1×6* 10,6 230,8 1000 3,08 68 59
1×10* 11,9 291,3 1000 1,83 91 81
1×16* 13,0 368,8 1000 1,15 117 109
1×25* 14,6 492,9 1000 0,727 150 146
1×35* 15,7 599,3 1000 0,524 179 179
1×50* 17,4 757,3 1000 0,387 211 218
1×70* 19,2 973,8 1000 0,268 257 275
1×95* 21,1 1249,7 1000 0,193 304 336
1×120* 22,8 1495,2 1000 0,153 341 388
1×150* 24,9 1820,2 1000 0,124 377 438
1×185* 27,0 2204,0 1000 0,0991 418 501
1×240* 29,9 2781,4 500 0,0754 469 508
1×300* 33,0 3521,7 500 0,0601 514 654
1×400* 37,7 4533,8 500 0,0470 565 733
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×1,5 12,6 327,5 1000 12,1 31 25
2×2,5 13,4 374,7 1000 7,41 40 33
2×4 14,3 439,7 1000 4,61 52 43
2×6 15,3 515,0 1000 3,08 65 54
2×10 17,8 677,3 1000 1,83 87 75
2×16 20,0 882,0 1000 1,15 113 100
2×25 23,2 1223,2 1000 0,727 146 136
2×35 25,5 1499,7 1000 0,524 176 165
2×50 28,9 1937,9 1000 0,387 208 201
2×70 33,2 2564,0 500 0,268 256 255
2×95 37,9 3738,5 500 0,193 307 314
2×120 41,6 4472,2 500 0,153 349 364
2×150 46,4 5549,1 500 0,124 391 416
2×185 51,0 6622,4 250 0,0991 442 480
2×240 57,2 8356,0 250 0,0754 509 565
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×1,5 13,1 357,8 1000 12,1 31 25
3×2,5 14,0 415,6 1000 7,41 40 33
3×4 15,0 495,0 1000 4,61 52 43
3×6 16,0 590,8 1000 3,08 65 54
3×10 18,8 793,3 1000 1,83 87 75
3×16 21,1 1054,8 1000 1,15 113 100
3×25 24,6 1484,3 1000 0,727 146 136
3×35 27,1 1844,0 1000 0,524 176 165
3×50 30,8 2405,5 1000 0,387 208 201
3×70 35,4 3232,5 500 0,268 256 255
3×95 40,4 4676,3 500 0,193 307 314
3×120 44,9 5675,1 500 0,153 349 364
3×150 49,7 6972,0 250 0,124 391 416
3×185 55,0 8453,9 250 0,0991 442 480
3×240 61,3 10612,9 250 0,0754 509 565
3×300 67,1 13173,4 250 0,0601 569 643
3×400 76,1 16488,4 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×2,5+1,5 14,7 458,5 1000 7,41 – 12,1 40 33
3×4+2,5 15,8 550,2 1000 4,61 – 7,41 52 43
3×6+4 16,9 666,3 1000 3,08 – 4,61 65 54
3×10+6 19,6 883,8 1000 1,83  – 3,08 87 75
3×16+10 22,3 1195,1 1000 1,15 – 1,83 113 100
3×25+16 25,8 1680,2 1000 0,727 – 1,15 146 136
3×35+16 28,0 2034,9 1000 0,524 – 1,15 176 165
3×50+25 32,6 2750,8 1000 0,387 – 0,727 208 201
3×70+35 37,5 4049,5 500 0,268 – 0,524 256 255
3×95+50 42,2 5213,3 500 0,193 – 0,387 307 314
3×120+70 47,2 6455,7 500 0,153 – 0,268 349 364
3×150+70 51,2 7636,6 500 0,124 – 0,268 391 416
3×185+95 57,0 9423,9 250 0,0991 – 0,193 442 480
3×240+120 63,4 11777,4 250 0,0754 – 0,1853 509 565
3×300+150 69,6 14642,0 250 0,0601 – 0,124 569 643
3×400+185 78,6 18227,0 250 0,0470 – 0,991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×1,5 14,0 405,9 1000 12,1 31 25
4×2,5 14,9 477,0 1000 7,41 40 33
4×4 16,1 576,0 1000 4,61 52 43
4×6 17,2 694,4 1000 3,08 65 54
4×10 20,3 948,1 1000 1,83 87 75
4×16 22,9 1279,7 1000 1,15 113 100
4×25 26,8 1819,5 1000 0,727 146 136
4×35 29,8 2296,9 1000 0,524 176 165
4×50 34,4 3071,2 1000 0,387 208 201
4×70 39,7 4507,4 500 0,268 256 255
4×95 45,1 5885,2 500 0,193 307 314
4×120 49,6 7114,6 500 0,153 349 364
4×150 55,3 8724,2 250 0,124 391 416
4×185 60,8 10646,1 250 0,0991 442 480
4×240 67,9 13439,7 250 0,0754 509 565
4×300 74,8 16817,1 250 0,0601 569 643
4×400 84,4 20927,4 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×1,5 14,9 528,0 1000 12,1 31 25
5×2,5 16,0 626,3 1000 7,41 40 33
5×4 17,2 763,1 1000 4,61 52 43
5×6 18,5 927,5 1000 3,08 65 54
5×10 22,0 1280,3 1000 1,83 87 75
5×16 24,9 1738,9 1000 1,15 113 100
5×25 29,4 2521,1 1000 0,727 146 136
5×35 33,1 3223,6 1000 0,524 176 165
5×50 38,5 4736,0 500 0,387 208 201
5×70 44,1 6260,1 500 0,268 256 255
5×95 49,6 8074,0 500 0,193 307 314
5×120 55,1 9826,6 250 0,153 349 364
5×150 61,0 12146,6 250 0,124 391 416
5×185 67,1 14695,5 250 0,0991 442 480
5×240 75,4 18696,4 250 0,0754 509 565
5×300 83,3 24389,0 250 0,0601 569 643
5×400 94,5 30526,8 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×4+2,5 17,0 639,9 1000 4,61 – 7,41 52 43
4×6+4 18,3 779,8 1000 3,08 – 4,61 65 54
4×10+6 21,3 1054,5 1000 1,83 – 3,08 87 75
4×16+10 24,3 1439,7 1000 1,15 – 1,83 113 100
4×25+16 28,5 2063,8 1000 0,727 – 1,15 146 136
4×35+16 31,2 2529,3 1000 0,524 – 1,15 176 165
4×50+25 36,2 3412,8 500 0,387 – 0,727 208 201
4×70+35 41,7 4994,5 500 0,268 – 0,524 256 255
4×95+50 47,4 6544,5 500 0,193 – 0,387 307 314
4×120+70 52,5 8011,8 250 0,153 – 0,268 349 364
4×150+70 57,7 9637,6 250 0,124 – 0,268 391 416
4×185+95 63,7 11792,0 250 0,0991 – 0,193 442 480
4×240+120 71,4 14913,8 250 0,0754 – 0,153 509 565
4×300+150 78,4 18563,2 250 0,0601 – 0,124 569 643
4×400+185 88,2 23022,1 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
8×4 17,7 943,5 1000 4,61 – –
10×1,5 18,0 667,8 1000 12,1 13,5 10,5
12×1,5 19,2 751,1 1000 12,1 – –
12×2,5 20,7 985,3 1000 7,41 – –
14×1,5 20,2 833,6 1000 12,1 12,0 9,5
19×1,5 22,6 1032,0 1000 12,1 11,0 9,0
27×1,5 25,8 1336,1 1000 12,1 – –
Note 1:
*For N2XB(a)H , YXZ4(a)ZH cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
