YXZ3Z1 / N2XFGBH

YXZ3Z1 / N2XFGBH

YXZ3Z1 / N2XFGBH

Category:

tds
Code

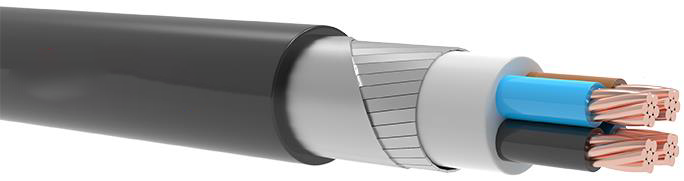

N2XFGbH , YXZ3Z1                    CU/XLPE/STA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS HD 604 S1-KISIM 5G , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
Flat Steel Wire and Galvanized Steel Tape
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application
These are cables with low dielectric losses used in energy networks in refineries, mines, hotels, schools, tunnels high constructions
hospitals, power plant, data processing centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×70 20,0 1110,8 1000 0,268 257 275
1×95 21,9 1405,4 1000 0,193 304 336
1×120 23,6 1670,9 1000 0,153 341 388
1×150 25,6 2022,0 1000 0,124 377 438
1×185 27,9 2425,7 1000 0,0991 418 501
1×240 30,8 3031,6 500 0,0754 469 508
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×6 re 15,6 560,3 1000 3,08 65 54
2×10 18,1 729,2 1000 1,83 87 75
2×16 20,3 942,6 1000 1,15 113 100
2×25 23,5 1297,3 1000 0,727 146 136
2×35 25,7 1587,2 1000 0,524 176 165
2×50 29,2 2030,3 1000 0,387 208 201
2×70 33,5 2669,7 500 0,268 256 255
2×95 37,5 3425,8 500 0,193 307 314
2×120 41,3 4125,9 500 0,153 349 364
2×150 46,1 5126,5 500 0,124 391 416
2×185 50,6 6186,0 250 0,0991 442 480
2×240 56,9 7853,6 250 0,0754 509 565
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 19,0 843,4 1000 1,83 87 75
3×16 21,3 1113,3 1000 1,15 113 100
3×25 24,8 1556,5 1000 0,727 146 136
3×35 27,3 1932,7 1000 0,524 176 165
3×50 31,0 2495,6 1000 0,387 208 201
3×70 35,6 3332,4 1000 0,268 256 255
3×95 40,0 4306,0 500 0,193 307 314
3×120 44,5 5282,9 500 0,153 349 364
3×150 49,2 6500,8 500 0,124 391 416
3×185 54,1 7898,8 250 0,0991 442 480
3×240 60,8 10050,7 250 0,0754 509 565
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×4 re 16,1 611,1 1000 4,61 52 43
4×6 re 17,3 734,1 1000 3,08 65 54
4×10 20,4 993,7 1000 1,83 87 75
4×16 23,0 1332,2 1000 1,15 113 100
4×25 26,9 1886,4 1000 0,727 146 136
4×35 29,8 2380,0 1000 0,524 176 165
4×50 34,5 3151,3 1000 0,387 208 201
4×70 39,1 4146,2 500 0,268 256 255
4×95 44,5 5468,9 500 0,193 307 314
4×120 49,0 6624,5 500 0,153 349 364
4×150 54,3 8199,2 250 0,124 391 416
4×185 60,2 10062,5 250 0,0991 442 480
4×240 67,3 12733,5 250 0,0754 509 565
4×300 74,2 15956,0 250 0,0601 569 643
4×400 83,9 20044,6 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×6 re 18,4 857,1 1000 3,08 65 54
5×10 21,9 1178,4 1000 1,83 87 75
5×16 24,8 1599,9 1000 1,15 113 100
5×25 29,3 2309,1 1000 0,727 146 136
5×35 32,6 2927,8 1000 0,524 176 165
5×50 37,7 3888,6 500 0,387 208 201
5×70 42,9 5142,6 500 0,268 256 255
5×95 48,8 6798,1 500 0,193 307 314
5×120 53,9 8286,8 250 0,153 349 364
5×150 60,2 10353,7 250 0,124 391 416
5×185 66,3 12628,0 250 0,0991 442 480
5×240 74,6 16141,8 250 0,0754 509 565
5×300 81,9 20214,0 250 0,0601 569 643
5×400 92,7 25346,3 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 22,3 1246,7 1000 1,15 – 1,83 113 100
3×25+16 25,8 1762,2 1000  0,727 – 1,15 146 136
3×35+16 28,1 2175,4 1000 0,524 – 1,15 176 165
3×50+25 32,2 2836,4 1000 0,387 – 0,727 208 201
3×70+35 36,9 3772,1 500 0,268 – 0,524 256 255
3×95+50 41,6 4904,4 500 0,193 – 0,387 307 314
3×120+70 46,6 6079,6 500 0,153 – 0,268 349 364
3×150+70 50,6 7387,1 250 0,124 – 0,268 391 416
3×185+95 56,4 9116,7 250 0,0991 – 0,193 442 480
3×240+120 62,8 11491,6 250 0,0754 – 0,153 509 565
3×300+150 69,0 14315,2 250 0,0601 – 0,124 569 643
3×400+185 78,1 18030,1 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 24,2 1479,6 1000 1,15 – 1,83 113 100
4×25+16 28,4 2128,4 1000 0,727 – 1,15 146 136
4×35+16 31,0 2651,3 1000 0,524 – 1,15 176 165
4×50+25 36,1 3514,3 1000 0,387 – 0,780 208 201
4×70+35 40,9 4655,0 500 0,268 – 0,524 256 255
4×95+50 46,7 6134,2 500 0,193 – 0,387 307 314
4×120+70 51,8 7498,7 500 0,153 – 0,268 349 364
4×150+70 56,9 9253,3 250 0,124 – 0,268 391 416
4×185+95 62,9 11337,6 250 0,0991 – 0,193 442 480
4×240+120 70,2 14327,9 250 0,0754 – 0,153 509 565
4×300+150 77,6 18027,9 250 0,0601 – 0,124 569 643
4×400+185 87,5 22582,8 250 0,0470 – 0,0991 637 737
Note :
Current carrying capacities are valid at 30°C ambient temperature
