Code | |||||||||||||||||||

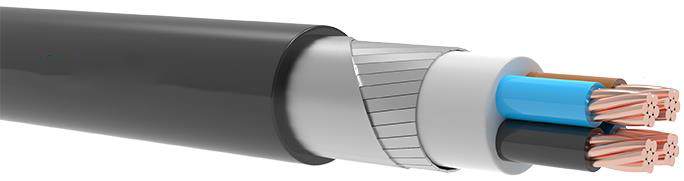

YXZ3V , N2XFGbY CU/XLPE/STA/PVC | |||||||||||||||||||
Voltage Rating | |||||||||||||||||||
0.6/1.0 kV | |||||||||||||||||||
Standards | |||||||||||||||||||
IEC 60502-1 , VDE 0276 | |||||||||||||||||||
IEC 60228 | Conductor | ||||||||||||||||||
Reaction to Fire Classification ( CPR ) | |||||||||||||||||||
EN 60332-1-2 | Flame Retardant | ||||||||||||||||||
Conductor | |||||||||||||||||||
Solid Copper Conductor (Class 1) | |||||||||||||||||||
Stranded Copper Conductor (Class 2) | |||||||||||||||||||
Insulation | |||||||||||||||||||
XLPE (Cross-linked Polyethylene) | |||||||||||||||||||
Filler | |||||||||||||||||||
PVC Filler | |||||||||||||||||||
Armour | |||||||||||||||||||
Flat Steel Wire and Galvanized Steel Tape | |||||||||||||||||||
Sheath | |||||||||||||||||||
PVC (Polyvinyl Chloride) | |||||||||||||||||||
Technical Data | |||||||||||||||||||
Max. Operating Temperature | : | 90°C | |||||||||||||||||
Short Circuit Temperature | : | 250°C (max.5 sec) | |||||||||||||||||
Bending Radius | : | 15D ( D : Overall Diameter ) | |||||||||||||||||
Test Voltage | : | 3,5 kV | |||||||||||||||||
Application: | |||||||||||||||||||
Locations under mechanical stress, underground, in power and switching stations, industrial plants. | |||||||||||||||||||
Nominal Cross Section | Overall Diameter | Net Weight | Delivery Length | Resistance at 20°C | Current Carrying Capacity | ||||||||||||||
(mm²) | (mm) | (kg/km) | (m) | (ohm/km) | In Ground at 20°C | In Air at 30°C | |||||||||||||
1×70 | 20,0 | 1116,4 | 1000 | 0,268 | 257 | 275 | |||||||||||||
1×95 | 21,9 | 1411,8 | 1000 | 0,193 | 304 | 336 | |||||||||||||
1×120 | 23,6 | 1677,8 | 1000 | 0,153 | 341 | 388 | |||||||||||||
1×150 | 25,6 | 2029,7 | 1000 | 0,124 | 377 | 438 | |||||||||||||
1×185 | 27,9 | 2434,1 | 1000 | 0,0991 | 418 | 501 | |||||||||||||
1×240 | 30,8 | 3041,9 | 500 | 0,0754 | 469 | 508 | |||||||||||||
Nominal Cross Section | Overall Diameter | Net Weight | Delivery Length | Resistance at 20°C | Current Carrying Capacity | ||||||||||||||
(mm²) | (mm) | (kg/km) | (m) | (ohm/km) | In Ground at 20°C | In Air at 30°C | |||||||||||||
2×6 re | 15,6 | 564,3 | 1000 | 3,08 | 65 | 54 | |||||||||||||
2×10 | 18,1 | 732,6 | 1000 | 1,83 | 87 | 75 | |||||||||||||
2×16 | 20,3 | 945,0 | 1000 | 1,15 | 113 | 100 | |||||||||||||
2×25 | 23,5 | 1297,5 | 1000 | 0,727 | 146 | 136 | |||||||||||||
2×35 | 25,7 | 1585,5 | 1000 | 0,524 | 176 | 165 | |||||||||||||
2×50 | 29,2 | 2026,1 | 1000 | 0,387 | 208 | 201 | |||||||||||||
2×70 | 33,5 | 2660,9 | 500 | 0,268 | 256 | 255 | |||||||||||||
2×95 | 37,5 | 3414,1 | 500 | 0,193 | 307 | 314 | |||||||||||||
2×120 | 41,3 | 4109,6 | 500 | 0,153 | 349 | 364 | |||||||||||||
2×150 | 46,1 | 5100,6 | 500 | 0,124 | 391 | 416 | |||||||||||||
2×185 | 50,6 | 6155,2 | 250 | 0,0991 | 442 | 480 | |||||||||||||
2×240 | 56,9 | 7809,0 | 250 | 0,0754 | 509 | 565 | |||||||||||||
Nominal Cross Section | Overall Diameter | Net Weight | Delivery Length | Resistance at 20°C | Current Carrying Capacity | ||||||||||||||
(mm²) | (mm) | (kg/km) | (m) | (ohm/km) | In Ground at 20°C | In Air at 30°C | |||||||||||||
3×10 | 19,0 | 847,8 | 1000 | 1,83 | 87 | 75 | |||||||||||||
3×16 | 21,3 | 1117,0 | 1000 | 1,15 | 113 | 100 | |||||||||||||
3×25 | 24,8 | 1558,8 | 1000 | 0,727 | 146 | 136 | |||||||||||||
3×35 | 27,3 | 1933,4 | 1000 | 0,524 | 176 | 165 | |||||||||||||
3×50 | 31,0 | 2494,9 | 1000 | 0,387 | 208 | 201 | |||||||||||||
3×70 | 35,6 | 3329,1 | 1000 | 0,268 | 256 | 255 | |||||||||||||
3×95 | 40,0 | 4300,0 | 500 | 0,193 | 307 | 314 | |||||||||||||
3×120 | 44,5 | 5273,2 | 500 | 0,153 | 349 | 364 | |||||||||||||
3×150 | 49,2 | 6485,5 | 500 | 0,124 | 391 | 416 | |||||||||||||
3×185 | 54,1 | 7880,5 | 250 | 0,0991 | 442 | 480 | |||||||||||||
3×240 | 60,8 | 10022,1 | 250 | 0,0754 | 509 | 565 | |||||||||||||
Nominal Cross Section | Overall Diameter | Net Weight | Delivery Length | Resistance at 20°C | Current Carrying Capacity | ||||||||||||||
(mm²) | (mm) | (kg/km) | (m) | (ohm/km) | In Ground at 20°C | In Air at 30°C | |||||||||||||
3×16+10 | 22,3 | 1250,8 | 1000 | 1,15 – 1,83 | 113 | 100 | |||||||||||||
3×25+16 | 25,8 | 1764,5 | 1000 | 0,727 – 1,15 | 146 | 136 | |||||||||||||
3×35+16 | 28,1 | 2176,3 | 1000 | 0,524 – 1,15 | 176 | 165 | |||||||||||||
3×50+25 | 32,2 | 2836,2 | 1000 | 0,387 – 0,727 | 208 | 201 | |||||||||||||
3×70+35 | 36,9 | 3767,7 | 500 | 0,268 – 0,524 | 256 | 255 | |||||||||||||
3×95+50 | 41,6 | 4898,7 | 500 | 0,193 – 0,387 | 307 | 314 | |||||||||||||
3×120+70 | 46,6 | 6070,6 | 500 | 0,153 – 0,268 | 349 | 364 | |||||||||||||
3×150+70 | 50,6 | 7368,9 | 250 | 0,124 – 0,268 | 391 | 416 | |||||||||||||
3×185+95 | 56,4 | 9093,2 | 250 | 0,0991 – 0,193 | 442 | 480 | |||||||||||||
3×240+120 | 62,8 | 11458,2 | 250 | 0,0754 – 0,153 | 509 | 565 | |||||||||||||
3×300+150 | 69,0 | 14272,3 | 250 | 0,0601 – 0,124 | 569 | 643 | |||||||||||||
3×400+185 | 78,1 | 17964,7 | 250 | 0,0470 – 0,0991 | 637 | 737 | |||||||||||||
Nominal Cross Section | Overall Diameter | Net Weight | Delivery Length | Resistance at 20°C | Current Carrying Capacity | ||||||||||||||
(mm²) | (mm) | (kg/km) | (m) | (ohm/km) | In Ground at 20°C | In Air at 30°C | |||||||||||||
4×4 re | 16,1 | 616,1 | 1000 | 4,61 | 52 | 43 | |||||||||||||
4×6 re | 17,3 | 738,9 | 1000 | 3,08 | 65 | 54 | |||||||||||||
4×10 | 20,4 | 998,2 | 1000 | 1,83 | 87 | 75 | |||||||||||||
4×16 | 23,0 | 1335,9 | 1000 | 1,15 | 113 | 100 | |||||||||||||
4×25 | 26,9 | 1888,4 | 1000 | 0,727 | 146 | 136 | |||||||||||||
4×35 | 29,8 | 2381,4 | 1000 | 0,524 | 176 | 165 | |||||||||||||
4×50 | 34,5 | 3150,9 | 1000 | 0,387 | 208 | 201 | |||||||||||||
4×70 | 39,1 | 4143,2 | 500 | 0,268 | 256 | 255 | |||||||||||||
4×95 | 44,5 | 5462,6 | 500 | 0,193 | 307 | 314 | |||||||||||||
4×120 | 49,0 | 6614,5 | 500 | 0,153 | 349 | 364 | |||||||||||||
4×150 | 54,3 | 8184,8 | 250 | 0,124 | 391 | 416 | |||||||||||||
4×185 | 60,2 | 10042,3 | 250 | 0,0991 | 442 | 480 | |||||||||||||
4×240 | 67,3 | 12704,8 | 250 | 0,0754 | 509 | 565 | |||||||||||||
4×300 | 74,2 | 16016,7 | 250 | 0,0601 | 569 | 643 | |||||||||||||
4×400 | 83,9 | 19990,4 | 250 | 0,0470 | 637 | 737 | |||||||||||||
Nominal Cross Section | Overall Diameter | Net Weight | Delivery Length | Resistance at 20°C | Current Carrying Capacity | ||||||||||||||
(mm²) | (mm) | (kg/km) | (m) | (ohm/km) | In Ground at 20°C | In Air at 30°C | |||||||||||||
5×6 re | 18,4 | 862,0 | 1000 | 3,08 | 65 | 54 | |||||||||||||
5×10 | 21,9 | 1182,6 | 1000 | 1,83 | 87 | 75 | |||||||||||||
5×16 | 24,8 | 1603,1 | 1000 | 1,15 | 113 | 100 | |||||||||||||
5×25 | 29,3 | 2310,9 | 1000 | 0,727 | 146 | 136 | |||||||||||||
5×35 | 32,6 | 2928,7 | 1000 | 0,524 | 176 | 165 | |||||||||||||
5×50 | 37,7 | 3887,0 | 500 | 0,387 | 208 | 201 | |||||||||||||
5×70 | 42,9 | 5137,7 | 500 | 0,268 | 256 | 255 | |||||||||||||
5×95 | 48,8 | 6788,8 | 500 | 0,193 | 307 | 314 | |||||||||||||
5×120 | 53,9 | 8274,4 | 250 | 0,153 | 349 | 364 | |||||||||||||
5×150 | 60,2 | 10332,8 | 250 | 0,124 | 391 | 416 | |||||||||||||
5×185 | 66,3 | 12602,4 | 250 | 0,0991 | 442 | 480 | |||||||||||||
5×240 | 74,6 | 16104,1 | 250 | 0,0754 | 509 | 565 | |||||||||||||
5×300 | 81,9 | 20164,8 | 250 | 0,0601 | 569 | 643 | |||||||||||||
5×400 | 92,7 | 25279,5 | 250 | 0,0470 | 637 | 737 | |||||||||||||
Nominal Cross Section | Overall Diameter | Net Weight | Delivery Length | Resistance at 20°C | Current Carrying Capacity | ||||||||||||||
(mm²) | (mm) | (kg/km) | (m) | (ohm/km) | In Ground at 20°C | In Air at 30°C | |||||||||||||
4×16+10 | 24,2 | 1483,2 | 1000 | 1,15 – 1,83 | 113 | 100 | |||||||||||||
4×25+16 | 28,4 | 2130,5 | 1000 | 0,727 – 1,15 | 146 | 136 | |||||||||||||
4×35+16 | 31,0 | 2621,9 | 1000 | 0,524 – 1,15 | 176 | 165 | |||||||||||||
4×50+25 | 36,1 | 3512,0 | 500 | 0,387 – 0,727 | 208 | 201 | |||||||||||||
4×70+35 | 40,9 | 4650,4 | 500 | 0,268 – 0,524 | 256 | 255 | |||||||||||||
4×95+50 | 46,7 | 6125,7 | 500 | 0,193 – 0,387 | 307 | 314 | |||||||||||||
4×120+70 | 51,8 | 7486,6 | 250 | 0,153 – 0,268 | 349 | 364 | |||||||||||||
4×150+70 | 56,9 | 9229,6 | 250 | 0,124 – 0,268 | 391 | 416 | |||||||||||||
4×185+95 | 62,9 | 11309,9 | 250 | 0,0991 – 0,193 | 442 | 480 | |||||||||||||
4×240+120 | 70,2 | 14288,2 | 250 | 0,0754 – 0,153 | 509 | 565 | |||||||||||||
4×300+150 | 77,6 | 17975,3 | 250 | 0,0601 – 0,124 | 569 | 643 | |||||||||||||
4X400+185 | 87,5 | 22501,2 | 250 | 0,0470 – 0,0991 | 637 | 737 | |||||||||||||
Note : | |||||||||||||||||||
Current carrying capacities are valid at 30°C ambient temperature. | |||||||||||||||||||
