YXZ2Z1 / N2XRH

YXZ2Z1 / N2XRH

YXZ2Z1 / N2XRH

Category:

tds
Code

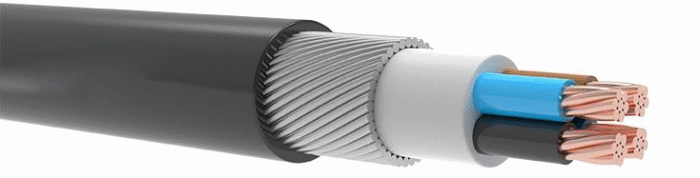

N2XRH , YXZ2Z1                    CU/XLPE/SWA/HFFR
N2XR(a)H , YXZ2(a)Z1         CU/XLPE/AWA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS HD 604 S1-KISIM 5G , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
Round Steel Wire (Aluminium Wire for One Core Cables)
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application
These are cables with low dielectric losses used in energy networks in refineries, mines, hotels, schools,
 tunnels high constructions hospitals, power plant, data processing centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×4* 11,7 222,2 1000 4,61 55 47
1×6* 12,2 254,9 1000 3,08 68 59
1×10* 13,5 316,0 1000 1,83 91 81
1×16* 14,5 394,6 1000 1,15 117 109
1×25* 16,1 523,4 1000 0,727 150 146
1×35* 17,3 633,5 1000 0,524 179 179
1×50* 18,9 786,6 1000 0,387 211 218
1×70* 20,7 1007,7 1000 0,268 257 275
1×95* 23,3 1323,8 1000 0,193 304 336
1×120* 25,0 1582,5 1000 0,153 341 388
1×150* 27,1 1917,8 1000 0,124 377 438
1×185* 29,4 2331,7 1000 0,0991 418 501
1×240* 32,3 2908,6 500 0,0754 469 508
1×300* 36,3 3732,9 500 0,0601 514 654
1×400* 40,3 4627,7 500 0,0470 565 733
1×500* 44,2 5863,2 250 0,0366 623 825
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×1,5 12,7 303,2 1000 12,1 31 25
2×2,5 13,5 348,1 1000 7,41 40 33
2×4 14,4 421,5 1000 4,61 52 43
2×6 15,4 485,6 1000 3,08 65 54
2×10 18,8 753,5 1000 1,83 87 75
2×16 21,0 968,4 1000 1,15 113 100
2×25 24,9 1456,4 1000 0,727 146 136
2×35 27,2 1741,5 1000 0,524 176 165
2×50 30,7 2227,5 1000 0,387 208 201
2×70 35,4 3039,8 500 0,268 256 255
2×95 39,9 3905,7 500 0,193 307 314
2×120 43,6 4673,5 500 0,153 349 364
2×150 49,5 6183,3 500 0,124 391 416
2×185 54,0 7242,3 250 0,0991 442 480
2×240 60,3 8972,5 250 0,0754 509 565
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×1,5 13,1 332,8 1000 12,1 31 25
3×2,5 14,0 386,9 1000 7,41 40 33
3×2,5 rm 14,5 411,8 1000 7,41 40 33
3×4 15,0 467,9 1000 4,61 52 43
3×4 rm 15,5 496,6 1000 4,61 52 43
3×6 16,9 644,0 1000 3,08 65 54
3×6 rm 17,7 692,7 1000 3,08 65 54
3×10 19,7 873,7 1000 1,83 87 75
3×16 22,7 1253,1 1000 1,15 113 100
3×25 26,1 1727,9 1000 0,727 146 136
3×35 28,8 2145,6 1000 0,524 176 165
3×50 32,5 2718,4 1000 0,387 208 201
3×70 38,0 3812,6 1000 0,268 256 255
3×95 42,4 4879,9 500 0,193 307 314
3×120 47,5 6154,7 500 0,153 349 364
3×150 52,6 7609,4 500 0,124 391 416
3×185 57,5 9083,6 250 0,0991 442 480
3×240 64,3 11135,9 250 0,0754 509 565
3×300 70,1 13537,8 250 0,0601 569 643
3×400 80,5 17835,0 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×16+10 21,9 1148,0 1000 1,15 – 1,83 113 100
2×25+16 25,0 1572,7 1000 0,727 – 1,15 146 136
2×35+16 26,7 1822,7 1000 0,524 – 1,15 176 165
3×16+10 23,7 1406,6 1000 1,15 – 1,83 113 100
3×25+16 27,3 1904,6 1000  0,727 – 1,15 146 136
3×35+16 29,6 2305,8 1000 0,524 – 1,15 176 165
3×50+25 34,6 3224,8 1000 0,387 – 0,727 208 201
3×70+35 39,3 4333,0 500 0,268 – 0,524 256 255
3×95+50 44,0 5508,4 500 0,193 – 0,387 307 314
3×120+70 50,1 7161,2 500 0,153 – 0,268 349 364
3×150+70 54,0 8358,3 250 0,124 – 0,268 391 416
3×185+95 59,8 10324,3 250 0,0991 – 0,193 442 480
3×240+120 66,2 12527,8 250 0,0754 – 0,153 509 565
3×300+150 73,8 16534,9 250 0,0601 – 0,124 569 643
3×400+185 82,9 19848,9 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×1,5 13,9 375,5 1000 12,1 31 25
4×2,5 14,8 441,3 1000 7,41 40 33
4×4 16,8 627,1 1000 4,61 52 43
4×6 18,0 768,3 1000 3,08 65 54
4×6 rm 18,9 803,4 1000 3,08 65 54
4×10 21,1 1025,1 1000 1,83 87 75
4×16 24,4 1481,6 1000 1,15 113 100
4×25 28,4 2077,5 1000 0,727 146 136
4×35 31,3 2596,4 1000 0,524 176 165
4×50 36,8 3586,2 1000 0,387 208 201
4×70 41,5 4689,3 500 0,268 256 255
4×95 47,5 6355,9 500 0,193 307 314
4×120 52,4 7732,2 500 0,153 349 364
4×150 57,7 9389,3 250 0,124 391 416
4×185 63,6 11185,7 250 0,0991 442 480
4×240 70,7 13756,6 250 0,0754 509 565
4×300 79,0 18153,9 250 0,0601 569 643
4×400 88,7 22018,7 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×1,5 14,6 458,2 1000 12,1 31 25
5×2,5 16,6 642,1 1000 7,41 40 33
5×4 17,8 775,0 1000 4,61 52 43
5×6 19,1 935,0 1000 3,08 65 54
5×10 23,3 1406,8 1000 1,83 87 75
5×16 26,2 1910,3 1000 1,15 113 100
5×25 30,8 2708,1 1000 0,727 146 136
5×35 34,9 3606,2 1000 0,524 176 165
5×50 40,0 4713,2 500 0,387 208 201
5×70 46,3 6534,2 500 0,268 256 255
5×95 52,2 8404,4 500 0,193 307 314
5×120 57,3 10209,7 250 0,153 349 364
5×150 63,6 12392,8 250 0,124 391 416
5×185 69,8 14783,6 250 0,0991 442 480
5×240 79,4 19694,8 250 0,0754 509 565
5×300 86,7 24073,6 250 0,0601 569 643
5×400 97,5 29585,4 250 0,0470 637 737
7×2,5 rm 18,4 731,0 1000 7,41 21,5 17,0
24×2,5 26,4 1638,7 1000 7,41 12,5 10,5
Note 1:
*For N2XR(a)H , YXZ2(a)Z1 cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature
