YXZ2Z1 FE 180 / N2XRH FE 180

YXZ2Z1 FE 180 / N2XRH FE 180

YXZ2Z1 FE 180 / N2XRH FE 180

Category:

tds
Code
N2XRH  FE 180 , YXZ2Z1  FE 180                    CU/MICA/XLPE/SWA/HFFR
N2XR(a)H  FE 180 , YXZ2(a)Z1  FE 180         CU/MICA/XLPE/AWA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS HD 604 S1-KISIM 5G , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
IEC 60331-21 Circuit Integrity
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant

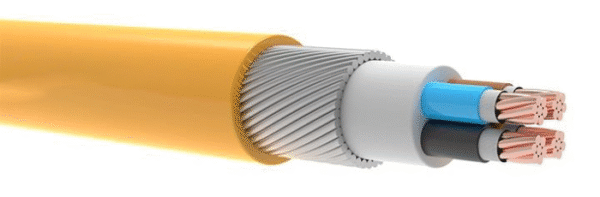

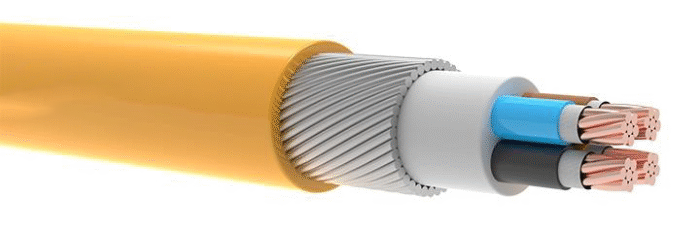

Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Separator
Mica Tape
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
Round Steel Wire (Aluminium Wire for One Core Cables)
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
These are cables with low dielectric losses used in energy networks in rafineries, mines, hotels, schools,
tunnels high constructions hospitals, power plant, data processing centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×1,5* 10,5 176,6 1000 12,1 33 27
1×2,5* 10,9 192,8 1000 7,41 43 36
1×4* 11,4 217,9 1000 4,61 55 47
1×6* 11,8 247,7 1000 3,08 68 59
1×10* 13,1 310,2 1000 1,83 91 81
1×16* 14,2 387,3 1000 1,15 117 109
1×25* 16,7 551,2 1000 0,727 150 146
1×35* 17,8 661,1 1000 0,524 179 179
1×50* 19,5 820,3 1000 0,387 211 218
1×70* 22,0 1084,1 1000 0,268 257 275
1×95* 23,9 1365,8 1000 0,193 304 336
1×120* 25,6 1617,2 1000 0,153 341 388
1×150* 27,7 1957,2 1000 0,124 377 438
1×185* 30,0 2365,2 1000 0,0991 418 501
1×240* 33,8 3037,0 500 0,0754 469 508
1×300* 36,9 3804,1 500 0,0601 514 654
1×400* 40,9 4710,0 500 0,0470 565 733
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×1,5 13,8 358,1 1000 12,1 31 25
2×2,5 14,6 405,8 1000 7,41 40 33
2×4 16,4 564,6 1000 4,61 52 43
2×6 17,4 650,1 1000 3,08 65 54
2×10 19,9 830,8 1000 1,83 87 75
2×16 22,8 1164,4 1000 1,15 113 100
2×25 26,0 1534,3 1000 0,727 146 136
2×35 28,4 1870,7 1000 0,524 176 165
2×50 31,9 2377,0 1000 0,387 208 201
2×70 36,6 3204,0 500 0,268 256 255
2×95 41,1 4110,8 500 0,193 307 314
2×120 45,9 5144,8 500 0,153 349 364
2×150 50,7 6351,7 500 0,124 391 416
2×185 55,2 7506,1 250 0,0991 442 480
2×240 61,5 9183,4 250 0,0754 509 565
2×300 66,9 11012,7 250 0,0601 569 643
2×400 76,2 14541,8 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×1,5 14,3 391,6 1000 12,1 31 25
3×2,5 15,2 449,2 1000 7,41 40 33
3×4 17,1 614,7 1000 4,61 52 43
3×4 rm 17,6 657,5 1000 4,61 52 43
3×6 18,1 738,5 1000 3,08 65 54
3×10 20,9 958,9 1000 1,83 87 75
3×16 23,9 1360,8 1000 1,15 113 100
3×25 27,4 1849,7 1000 0,727 146 136
3×35 30,1 2238,1 1000 0,524 176 165
3×50 34,7 3075,7 1000 0,387 208 201
3×70 39,3 3998,4 1000 0,268 256 255
3×95 43,7 5059,7 500 0,193 307 314
3×120 48,8 6407,5 500 0,153 349 364
3×150 53,9 7807,8 500 0,124 391 416
3×185 58,8 9335,3 250 0,0991 442 480
3×240 65,5 11423,1 250 0,0754 509 565
3×300 71,4 13859,0 250 0,0601 569 643
3×400 81,8 18162,6 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 25,1 1579,8 1000 1,15 – 1,83 113 100
3×25+16 28,8 2145,6 1000  0,727 – 1,15 146 136
3×35+16 31 2526,7 1000 0,524 – 1,15 176 165
3×50+25 36 3523,3 1000 0,387 – 0,727 208 201
3×70+35 40,7 4441,5 500 0,268 – 0,524 256 255
3×95+50 46,5 6088,5 500 0,193 – 0,387 307 314
3×120+70 51,5 7375,7 500 0,153 – 0,268 349 364
3×150+70 55,5 8672,0 250 0,124 – 0,268 391 416
3×185+95 61,3 10389,3 250 0,0991 – 0,193 442 480
3×240+120 67,7 12645,7 250 0,0754 – 0,153 509 565
3×300+150 75,3 16355,6 250 0,0601 – 0,124 569 643
3×400+185 84,3 19966,3 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×1,5 16,1 518,7 1000 12,1 31 25
4×2,5 17,0 600,6 1000 7,41 40 33
4×4 18,2 751,6 1000 4,61 52 43
4×6 19,3 879,2 1000 3,08 65 54
4×10 23,1 1306,1 1000 1,83 87 75
4×16 25,7 1695,9 1000 1,15 113 100
4×25 29,8 2325,2 1000 0,727 146 136
4×35 33,6 3061,6 1000 0,524 176 165
4×50 38,3 4005,1 1000 0,387 208 201
4×70 42,9 5169,2 500 0,268 256 255
4×95 48,9 7004,2 500 0,193 307 314
4×120 53,9 8442,2 500 0,153 349 364
4×150 59,2 10138,9 250 0,124 391 416
4×185 65,1 12186,8 250 0,0991 442 480
4×240 73,5 16058,0 250 0,0754 509 565
4×300 80,5 19349,1 250 0,0601 569 643
4×400 90,1 23406,7 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 27,1 1905,5 1000 1,15 – 1,83 113 100
4×25+16 31,5 2650,6 1000  0,727 – 1,15 146 136
4×35+16 35,0 3404,2 1000 0,524 – 1,15 176 165
4×50+25 40,1 4483,2 1000 0,387 – 0,727 208 201
4×70+35 46,0 6179,4 500 0,268 – 0,524 256 255
4×95+50 51,7 7959,8 500 0,193 – 0,387 307 314
4×120+70 56,8 9711,2 500 0,153 – 0,268 349 364
4×150+70 62,0 11359,4 250 0,124 – 0,268 391 416
4×185+95 68,0 13719,3 250 0,0991 – 0,193 442 480
4×240+120 76,7 17994,7 250 0,0754 – 0,153 509 565
4×300+150 84,1 21793,8 250 0,0601 – 0,124 569 643
4×400+185 93,9 26486,4 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×1,5 17,0 593,6 1000 12,1 31 25
5×2,5 18,1 695,3 1000 7,41 40 33
5×4 19,3 842,3 1000 4,61 52 43
5×6 20,6 999,4 1000 3,08 65 54
5×10 24,8 1540,0 1000 1,83 87 75
5×16 27,7 2013,0 1000 1,15 113 100
5×25 33,3 2947,2 1000 0,727 146 136
5×35 36,6 3699,1 1000 0,524 176 165
5×50 41,7 4824,1 500 0,387 208 201
5×70 47,9 6591,6 500 0,268 256 255
5×95 53,9 8601,5 500 0,193 307 314
5×120 58,9 10309,7 250 0,153 349 364
5×150 65,3 12345,9 250 0,124 391 416
5×185 71,4 14845,6 250 0,0991 442 480
5×240 81,1 19615,0 250 0,0754 509 565
5×300 88,3 23745,0 250 0,0601 569 643
5×400 99,1 28929,9 250 0,0470 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
6×1,5 18,2 649,4 1000 12,1 – –
7×1,5 18,2 676,9 1000 12,1 16,0 12,5
7×2,5 19,3 793,6 1000 7,41 21,5 17,0
8×1,5 18,9 737,8 1000 12,1 – –
12×1,5 22,0 1007,1 1000 12,1 – –
12×2,5 23,5 1230,9 1000 7,41 – –
12×2,5 rm 24,5 1283,1 1000 7,41 – –
16×2,5 25,8 1455,6 1000 7,41 – –
19×2,5 27,3 1625,2 1000 7,41 11,0 9,0
19×2,5 rm 28,7 1734,5 1000 7,41 14,5 11,5
24×2,5 29,8 2028,9 1000 7,41 – –
Note 1:
* For N2XR(a)H , YXZ2(a)H cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
