YXV UV / N2XY UV

YXV UV / N2XY UV

YXV UV / N2XY UV

Category:

tds
Code

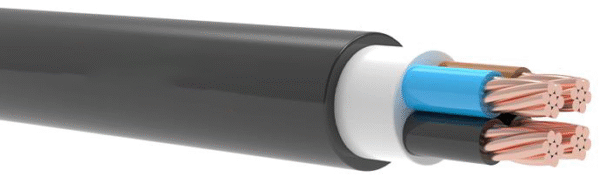

YXV , N2XY , 2XY , R2V       CU/XLPE/PVC
Voltage Rating
0.6/1 kV
Standards
IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
PVC Filler
Armour
–
Sheath
PVC (Polyvinyl Chloride) – UV Resistance
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distributions,
industrial plants where there is a risk of mechanical damage. Suitable for comparatively high maximum permissible
conductor temperature.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×1,5 5,6 55,5 1000 12,1 33 26
1×1,5 rm 5,7 57,6 1000 12,1 33 26
1×2,5 5,9 67,6 1000 7,41 42 34
1×2,5 rm 6,2 71,0 1000 7,41 42 34
1×4 6,4 84,8 1000 4,61 54 44
1×4 rm 6,7 88,9 1000 4,61 54 44
1×6 6,9 106,6 1000 3,08 67 56
1×6 rm 7,3 112,3 1000 3,08 67 56
1×10 8,2 152,6 1000 1,83 89 77
1×16 9,2 215,8 1000 1,15 115 102
1×25 10,8 317,0 1000 0,727 148 138
1×35 12,0 411,7 1000 0,524 177 170
1×50 13,6 545,3 1000 0,387 209 207
1×70 15,5 738,7 1000 0,268 256 263
1×95 17,5 1000,5 1000 0,193 307 325
1×120 19,4 1234,3 1000 0,153 349 380
1×150 21,6 1530,8 1000 0,124 393 437
1×185 23,8 1904,5 1000 0,0991 445 507
1×240 26,8 2444,0 500 0,0754 517 604
1×300 29,4 3108,2 500 0,0601 583 697
1×400 33,4 3886,2 500 0,0470 663 811
1×500 37,3 5070,4 500 0,0366 749 940
1×630 41,8 6293,6 500 0,0283 843 1083
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×1,5 10,1 159,1 1000 12,1 31 24
2×1,5 rm 10,5 168,1 1000 12,1 31 24
2×2,5 10,9 193,6 1000 7,41 40 32
2×2,5 rm 11,4 207,4 1000 7,41 40 32
2×4 11,8 241,8 1000 4,61 52 42
2×4 rm 12,3 259,0 1000 4,61 52 42
2×6 12,8 300,9 1000 3,08 64 53
2×6 rm 13,5 325,1 1000 3,08 64 53
2×10 15,3 427,9 1000 1,83 86 74
2×16 17,5 596,7 1000 1,15 112 98
2×25 20,7 879,1 1000 0,727 145 133
2×35 23,0 1136,7 1000 0,524 174 162
2×50 26,4 1499,3 1000 0,387 206 197
2×70 30,7 2053,0 500 0,268 254 250
2×95 34,7 2731,6 500 0,193 305 308
2×120 38,9 3393,0 500 0,153 348 359
2×150 43,3 4262,7 500 0,124 392 412
2×185 47,8 5264,2 250 0,0991 444 475
2×240 54,1 6737,1 250 0,0754 517 564
2×300 59,5 8493,8 250 0,0601 585 649
2×400 67,9 10813,9 250 0,0470 671 761
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×1,5 10,5 179,2 1000 12,1 31 24
3×1,5 rm 10,9 188,2 1000 12,1 31 24
3×2,5 11,4 222,6 1000 7,41 40 32
3×2,5 rm 11,9 237,7 1000 7,41 40 32
3×4 12,4 284,2 1000 4,61 52 42
3×4 rm 12,9 302,8 1000 4,61 52 42
3×6 13,4 361,1 1000 3,08 64 53
3×6 rm 14,2 387,6 1000 3,08 64 53
3×10 16,2 525,3 1000 1,83 86 74
3×16 18,5 747,4 1000 1,15 112 98
3×25 22,0 1113,1 1000 0,727 145 133
3×35 24,4 1454,9 1000 0,524 174 162
3×50 28,2 1946,7 1000 0,387 206 197
3×70 32,8 2676,7 1000 0,268 254 250
3×95 37,2 3588,5 500 0,193 305 308
3×120 41,7 4452,4 500 0,153 348 359
3×150 46,4 5584,7 500 0,124 392 412
3×185 51,8 6922,2 250 0,0991 444 475
3×240 58,0 8869,0 250 0,0754 517 564
3×300 63,9 11220,0 250 0,0601 585 649
3×400 72,9 14216,2 250 0,0470 671 761
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×16+10 17,7 710,1 1000 1,15 – 1,83 112 98
2×25+16 20,8 1058,1 1000 0,727 – 1,15 145 133
2×35+16 22,7 1333,6 1000 0,524 – 1,15 174 162
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 19,5 864,1 1000 1,15 – 1,83 112 98
3×25+16 23,1 1284,6 1000  0,727 – 1,15 145 133
3×35+16 25,3 1610,9 1000 0,524 – 1,15 174 162
3×50+25 29,5 2221,5 1000 0,387 – 0,727 206 197
3×70+35 34,1 3143,0 500 0,268 – 0,524 254 250
3×95+50 38,9 4169,1 500 0,193 – 0,387 305 308
3×120+70 43,9 5296,8 500 0,153 – 0,268 348 359
3×150+70 47,8 6309,4 250 0,124 – 0,268 392 412
3×185+95 53,6 8060,1 250 0,0991 – 0,193 444 475
3×240+120 60,0 10212,0 250 0,0754 – 0,153 517 564
3×300+150 66,7 13053,2 250 0,0601 – 0,124 585 649
3×400+185 75,3 16211,9 250 0,0470 – 0,0991 671 761
3×35+25 26,3 1728,8 1000 0,524 – 0,727 174 162
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×1,5 11,3 210,5 1000 12,1 31 24
4×1,5 rm 11,7 221,9 1000 12,1 31 24
4×2,5 12,2 265,4 1000 7,41 40 32
4×2,5 rm 12,8 283,6 1000 7,41 40 32
4×4 13,3 343,6 1000 4,61 52 42
4×4 rm 13,9 365,8 1000 4,61 52 42
4×6 14,5 441,9 1000 3,08 64 53
4×6 rm 15,4 473,8 1000 3,08 64 53
4×10 17,6 651,6 1000 1,83 86 74
4×16 20,2 937,1 1000 1,15 112 98
4×25 24,1 1405,5 1000 0,727 145 133
4×35 27,1 1845,4 1000 0,524 174 162
4×50 31,2 2492,6 1000 0,387 206 197
4×70 36,3 3430,6 500 0,268 254 250
4×95 41,3 4610,5 500 0,193 305 308
4×120 46,2 5716,8 500 0,153 348 359
4×150 51,5 7169,3 250 0,124 392 412
4×185 57,4 8923,6 250 0,0991 444 475
4×240 64,5 11437,5 250 0,0754 517 564
4×300 71,0 14519,5 250 0,0601 585 649
4×400 81,1 18359,8 250 0,0470 671 761
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×1,5 12,0 282,6 1000 12,1 31 24
5×1,5 rm 12,5 300,4 1000 12,1 31 24
5×2,5 13,1 359,1 1000 7,41 40 32
5×2,5 rm 13,7 387,5 1000 7,41 40 32
5×4 14,3 468,0 1000 4,61 52 42
5×4 rm 15,0 503,4 1000 4,61 52 42
5×6 15,6 603,9 1000 3,08 64 53
5×6 rm 16,6 655,0 1000 3,08 64 53
5×10 19,1 896,9 1000 1,83 86 74
5×16 22,0 1293,5 1000 1,15 112 98
5×25 26,3 1958,0 1000 0,727 145 133
5×35 29,8 2580,8 1000 0,524 174 162
5×50 34,5 3488,7 500 0,387 206 197
5×70 40,1 4787,1 500 0,268 254 250
5×95 45,6 6405,6 500 0,193 305 308
5×120 51,1 7979,1 250 0,153 348 359
5×150 57,0 10041,8 250 0,124 392 412
5×185 63,6 12450,0 250 0,0991 444 475
5×240 71,4 16021,9 250 0,0754 517 564
5×300 78,7 20259,0 250 0,0601 585 649
5×400 89,9 25786,9 250 0,0470 671 761
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10+6 18,6 740,2 1000 1,83 – 3,08 86 74
4×16+10 21,4 1065,0 1000 1,15 – 1,83 112 98
4×25+16 25,4 1595,5 1000 0,727 – 1,15 145 133
4×35+16 28,2 2040,6 1000 0,524 – 1,15 174 162
4×50+25 32,9 2799,8 500 0,387 – 0,727 206 197
4×70+35 38,1 3840,9 500 0,268 – 0,524 254 250
4×95+50 43,5 5171,5 500 0,193 – 0,387 305 308
4×120+70 49,0 6498,0 250 0,153 – 0,268 348 359
4×150+70 53,7 7914,0 250 0,124 – 0,268 392 412
4×185+95 60,1 9951,7 250 0,0991 – 0,193 444 475
4×240+120 67,4 12696,2 250 0,0754 – 0,153 517 564
4×300+150 74,9 16188,5 250 0,0601 – 0,124 585 649
4×150+1,5 51,5 7107,1 250 0,124 – 12,1 392 412
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×25+2×16 24,8 1534,8 1000 0,727 – 1,15 145 133
3×35+2×16 26,6 1859,2 1000 0,524 – 1,15 174 162
3×50+2×25 31,3 2611,0 500 0,387 – 0,727 206 197
3×70+2×35 36,2 3410,4 500 0,268 – 0,524 254 250
3×95+2×50 41,8 4743,7 500 0,193 – 0,387 305 308
3×120+2×70 46,9 6009,0 250 0,153 – 0,268 348 359
3×150+2×70 50,4 7082,5 250 0,124 – 0,268 392 412
3×185+2×95 56,3 8872,1 250 0,0991 – 0,193 444 475
3×240+2×120 63,5 11350,6 250 0,0754 – 0,153 517 564
3×300+2×150 70,6 14164,7 250 0,0601 – 0,124 585 649
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
6×1,5 12,8 272,9 1000 12,1 – –
6×2,5 14,0 352,4 1000 7,41 – –
6×4 15,4 466,4 1000 4,61 – –
6×6 16,8 610,6 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
7×1,5 13,0 285,6 1000 12,1 16,0 12,5
7×2,5 14,1 372,6 1000 7,41 21,5 17,0
7×4 15,5 498,0 1000 4,61 27,5 22,0
7×6 17,0 657,7 1000 3,08 35,0 28,0
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
8×1,5 13,5 314,2 1000 12,1 – –
8×2,5 14,8 412,7 1000 7,41 – –
8×4 16,3 554,7 1000 4,61 – –
8×6 17,9 736,1 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
9×1,5 14,1 342,7 1000 12,1 – –
9×2,5 15,4 452,6 1000 7,41 – –
9×4 17,0 611,4 1000 4,61 – –
9×6 18,7 814,4 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
10×1,5 14,6 371,0 1000 12,1 13,5 10,5
10×2,5 16,0 492,3 1000 7,41 18,0 14,5
10×4 17,7 667,9 1000 4,61 23,0 18,5
10×6 19,5 892,5 1000 3,08 29,0 23,5
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
11×1,5 15,1 397,6 1000 12,1 – –
11×2,5 16,5 529,9 1000 7,41 – –
11×4 18,3 721,6 1000 4,61 – –
11×6 20,1 967,3 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
12×1,5 15,5 424,8 1000 12,1 – –
12×2,5 17,1 568,3 1000 7,41 – –
12×2,5 rm 18,1 608,0 1000 7,41 – –
12×4 18,9 776,3 1000 4,61 – –
12×6 20,8 1043,3 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
13×1,5 16,0 452,5 1000 12,1 – –
13×2,5 17,6 607,4 1000 7,41 – –
13×4 19,5 832,1 1000 4,61 – –
13×6 21,5 1120,6 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
14×1,5 16,4 478,4 1000 12,1 12,0 9,5
14×2,5 18,1 644,3 1000 7,41 16,0 13,0
14×4 20,1 884,9 1000 4,61 20,5 17,0
14×6 22,1 1194,3 1000 3,08 26,0 21,5
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
16×1,5 17,3 531,6 1000 12,1 – –
16×2,5 19,0 719,7 1000 7,41 – –
16×4 21,2 993,0 1000 4,61 – –
16×6 23,4 1344,7 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
18×1,5 18,0 583,9 1000 12,1 – –
18×2,5 19,9 794,1 1000 7,41 – –
18×4 22,2 1099,8 1000 4,61 – –
18×6 24,5 1493,8 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
19×1,5 18,4 609,3 1000 12,1 11,0 9,0
19×2,5 20,3 830,3 1000 7,41 14,5 11,5
19×2,5 rm 21,5 889,1 1000 7,41 14,5 11,5
19×4 22,6 1152,0 1000 4,61 18,5 15,5
19×6 25,0 1566,8 1000 3,08 23,0 19,5
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
20×1,5 18,7 635,0 1000 12,1 – –
20×2,5 20,7 867,0 1000 7,41 – –
20×4 23,1 1204,8 1000 4,61 – –
20×6 25,6 1640,7 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
21×1,5 19,1 661,1 1000 12,1 – –
21×2,5 21,1 904,2 1000 7,41 – –
21×4 23,6 1258,2 1000 4,61 – –
21×6 26,1 1715,2 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
24×1,5 20,1 736,8 1000 12,1 9,5 8,0
24×2,5 22,2 1012,6 1000 7,41 12,5 10,5
24×2,5 rm 23,6 1084,6 1000 7,41 12,5 10,5
24×4 24,9 1414,7 1000 4,61 16,0 13,5
24×6 27,6 1934,3 1000 3,08 20,0 17,0
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
25×1,5 20,2 762,6 1000 12,1 – –
25×2,5 22,3 1049,5 1000 7,41 – –
25×4 25,0 1467,8 1000 4,61 – –
25×6 27,7 2008,7 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
26×1,5 20,4 787,2 1000 12,1 – –
26×2,5 22,6 1084,8 1000 7,41 – –
26×4 25,3 1519,0 1000 4,61 – –
26×6 28,1 2080,5 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
27×1,5 21,0 813,6 1000 12,1 – –
27×2,5 23,3 1122,5 1000 7,41 – –
27×4 26,1 1573,1 1000 4,61 – –
27×6 29,2 2171,7 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
30×1,5 21,9 888,0 1000 12,1 – –
30×2,5 24,3 1229,4 1000 7,41 – –
30×4 27,3 1727,8 1000 4,61 – –
30×6 30,6 2389,5 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
37×1,5 23,9 1061,4 1000 12,1 – –
37×2,5 26,5 1478,8 1000 7,41 – –
37×4 30,0 2105,2 1000 4,61 – –
37×6 33,6 2916,4 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
48×1,5 26,5 1328,1 1000 12,1 – –
48×2,5 29,8 1880,0 1000 7,41 – –
48×4 33,8 2685,0 1000 4,61 – –
48×6 37,9 3749,3 1000 3,08 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
61×1,5 29,5 1654,0 1000 12,1 7,0 6,0
61×2,5 33,1 2348,8 1000 7,41 9,0 8,0
61×4 37,7 3383,8 1000 4,61 11,5 10,0
61×6 42,3 4704,0 1000 3,08 14,5 13,0
Note :
Current carrying capacities are valid at 30°C ambient temperature.

Related products

Scroll to Top
