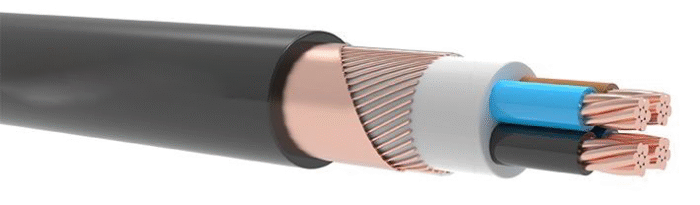

YXCZ1 / N2XCH

YXCZ1 / N2XCH

YXCZ1 / N2XCH

Category:

tds
Code
N2XCH , YXCZ1        CU/XLPE/SC/HFFR
Voltage Rating
0.6/1 kV
Standards
TS HD 604 S1-KISIM 5G , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Soli Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
Copper Wire and Copper Tape
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
These are cables with low dielectric losses used in energy networks in refineries, mines, hotels, schools, tunnels high constructions
hospitals, power plant, data processing centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×1,5/1,5 8,1 101,0 1000 12,1 – 12,1 33 27
1×2,5/2,5 8,4 124,5 1000 7,41 – 7,41 43 36
1×4/4 8,9 155,0 1000 4,61 – 4,61 55 47
1×6/6 9,4 197,7 1000 3,08 -3,08 68 59
1×10/10 10,9 283,3 1000 1,83 – 1,83 91 81
1×16/10 11,9 352,5 1000 1,15 – 1,83 117 109
1×16/16 12,7 407,0 1000 1,15 – 1,15 117 109
1×25/16 14,4 528,3 1000 0,727 -1,15 150 146
1×35/16 15,6 630,8 1000 0,524 – 1,5 179 179
1×50/25 17,4 837,9 1000 0,387 – 0,727 211 218
1×70/35 19,3 1139,0 1000 0,268 -0,524 257 275
1×95/50 21,6 1515,7 1000 0,193 -0,387 304 336
1×120/70 23,9 1952,9 1000 0,153 – 0,268 341 388
1×150/70 26,0 2283,0 1000 0,124 – 0,268 377 438
1×185/95 28,7 2902,8 1000 0,0991 – 0,193 418 501
1×240/120 32,0 3695,7 500 0,0754 – 0,153 469 508
1×500/50 41,2 5743,3 500 0,0366 – 0,387 623 825
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×1,5/1,5 10,8 174,1 1000 12,1 – 12,1 31 25
2×2,5/2,5 11,6 218,3 1000 7,41 – 7,41 40 33
2×4/4 12,5 281,0 1000 4,61 – 4,61 52 43
2×6/6 13,5 359,3 1000 3,08 – 3,08 65 54
2×10/10 16,4 531,5 1000 1,83 – 1,83 87 75
2×16/10 18,6 704,4 1000 1,15 – 1,83 113 100
2×16/16 19,4 777,7 1000 1,15 – 1,15 113 100
2×25/16 22,8 1074,4 1000 0,727 – 1,15 146 136
2×35/16 25,2 1342,0 1000 0,524 – 1,15 176 165
2×50/25 28,6 1794,6 500 0,387 – 0,727 208 201
2×70/35 32,8 2466,8 500 0,268 – 0,524 256 255
2×95/50 37,0 3250,8 500 0,193 – 0,387 307 314
2×120/70 41,2 4098,3 500 0,153 – 0,268 349 364
2×150/70 45,9 5020,4 500 0,124 – 0,268 391 416
2×185/95 50,8 6247,0 500 0,0991 – 0,193 442 480
2×240/120 57,3 8019,6 500 0,0754 – 0,153 509 565
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×1,5/1,5 11,2 194,3 1000 12,1 – 12,1 31 25
3×2,5/2,5 12,1 247,5 1000 7,41 – 7,41 40 33
3×4/4 13,1 331,1 1000 4,61 – 4,61 52 43
3×6/6 14,2 427,8 1000 3,08 – 3,08 65 54
3×10/10 17,3 639,0 1000 1,83 – 1,83 87 75
3×16/10 19,7 866,3 1000 1,15 – 1,83 113 100
3×16/16 19,8 932,0 1000 1,15 – 1,15 113 100
3×25/16 24,1 1311,5 1000 0,727 – 1,15 146 136
3×25/25 24,2 1382,6 1000 0,727 – 0,727 146 136
3×35/16 26,7 1663,2 1000 0,524 – 1,15 176 165
3×35/35 26,8 1830,7 1000 0,524 – 0,524 176 165
3×50/25 30,4 2249,0 500 0,387 – 0,727 208 201
3×70/35 34,9 3098,3 500 0,268 – 0,524 256 255
3×95/50 39,5 4094,7 500 0,193 – 0,387 307 314
3×120/70 43,9 5185,8 500 0,153 – 0,268 349 364
3×150/70 48,9 6323,5 250 0,124 – 0,268 391 416
3×185/95 54,2 7881,0 250 0,0991 – 0,193 442 480
3×240/120 61,2 10157,3 250 0,0754 – 0,153 509 565
3×300/150 67,2 12814,5 250 0,0601 – 0,124 569 643
3×400/185 76,6 16224,0 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×1,5/1,5 12,0 226,9 1000 12,1 – 12,1 31 25
4×2,5/2,5 12,9 291,6 1000 7,41 – 7,41 40 33
4×2,5/10 13,1 357,3 1000 7,41 – 1,83 40 33
4×4/4 14,1 392,7 1000 4,61 – 4,61 52 43
4×4/10 14,4 445,0 1000 4,61 – 1,83 52 43
4×6/6 15,3 510,9 1000 3,08 – 3,08 65 54
4×6/10 15,5 545,1 1000 3,08 – 1,83 65 54
4×10/10 18,7 758,7 1000 1,83 – 1,83 87 75
4×16/10 21,4 1060,2 1000 1,15 – 1,83 113 100
4×16/16 22,3 1140,2 1000 1,15 – 1,15 113 100
4×25/16 26,3 1626,2 1000 0,727 – 1,15 146 136
4×35/16 29,2 2078,7 1000 0,524 – 1,15 176 165
4×50/25 33,4 2847,2 500 0,387 – 0,727 208 201
4×50/35 33,8 2923,3 500 0,387 – 0,524 208 201
4×70/35 38,3 3871,6 500 0,268 – 0,524 256 255
4×95/50 43,4 5157,4 500 0,193 – 0,387 307 314
4×120/70 48,7 6497,5 250 0,153 – 0,268 349 364
4×150/70 53,9 7958,8 250 0,124 – 0,268 391 416
4×185/95 60,2 9936,7 250 0,0991 – 0,193 442 480
4×240/120 67,4 12726,3 250 0,0754 – 0,153 509 565
4×300/150 74,6 16120,9 250 0,0601 – 0,124 569 643
4×400/185 84,6 20287,2 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×1,5/1,5 12,7 292,8 1000 12,1 – 12,1 31 25
5×2,5/2,5 13,8 385,6 1000 7,41 – 7,41 40 33
5×4/4 15,1 507,1 1000 4,61 – 4,61 52 43
5×6/6 16,5 659,7 1000 3,08 – 3,08 65 54
5×10/10 20,3 994,8 1000 1,83 – 1,83 87 75
5×16/10 23,3 1400,4 1000 1,15 – 1,83 113 100
5×25/16 28,6 2153,6 1000 0,727 – 1,15 146 136
5×35/16 31,8 2759,5 500 0,524 – 1,15 176 165
5×50/25 36,9 3775,6 500 0,387 – 0,727 208 201
5×70/35 42,0 5098,9 500 0,268 – 0,524 256 255
5×95/50 48,0 6834,3 250 0,193 – 0,387 307 314
5×120/70 53,5 8514,8 250 0,153 – 0,268 349 364
5×150/70 59,6 10576,6 250 0,124 – 0,268 391 416
5×185/95 66,1 13139,6 250 0,0991 – 0,193 442 480
5×240/120 74,6 16886,4 250 0,0754 – 0,153 509 565
5×300/150 82,0 21319,0 250 0,0601 – 0,124 569 643
5×400/185 93,1 26911,8 250 0,0470 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10/10 20,8 980,3 500 1,15 – 1,83 – 1,83 113 100
3×25+16/16 25,3 1493,9 500 0,727 – 1,15 – 1,15 146 136
3×35+16/16 27,4 1814,5 500 0,524 – 1,15 – 1,15 176 165
3×50+25/25 31,6 2506,2 500 0,387 – 0,727 – 0,727 208 201
3×70+35/35 36,1 3438,3 500 0,268 – 0,524 – 0,524 256 255
3×95+50/50 41,1 4588,8 500 0,193 – 0,387 – 0,387 307 314
3×120+70/70 46,4 5885,0 250 0,153 – 0,268 – 0,268 349 364
3×150+70/70 50,3 6956,1 250 0,124 – 0,268 – 0,268 391 416
3×185+95/95 56,4 8828,0 250 0,0991 – 0,193 – 0,193 442 480
3×240+120/120 63,1 11205,5 250 0,0754 – 0,153 – 0,153 509 565
3×300+150/150 69,5 14112,9 250 0,0601 – 0,124 – 0,124 569 643
3×400+185/185 78,9 17783,8 250 0,0470 – 0,0991 – 0,0991 637 737
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
6×1,5/2,5 13,6 315,3 1000 12,1 – 7,41 – –
6×4/4 16,2 527,8 1000 4,61 – 4,61 – –
7×1,5/2,5 13,7 320,7 1000 12,1 – 7,41 16,0 12,5
7×2,5/2,5 14,9 408,7 1000 7,41 – 7,41 21,5 17,0
7×4/4 16,4 555,2 1000 4,61 – 4,61 27,5 22,0
10×1,5/1,5 15,4 403,9 1000 12,1 – 12,1 13,5 10,5
10×1,5/2,5 15,4 413,0 1000 12,1 – 7,41 13,5 10,5
10×1,5/4 15,4 426,6 1000 12,1 – 4,61 13,5 10,5
10×1,5/6 15,4 444,7 1000 12,1 – 3,08 13,5 10,5
10×2,5/4 16,9 554,3 1000 7,41 – 4,61 18,0 14,5
12×1,5/2,5 16,4 468,3 1000 12,1 – 7,41 – –
12×1,5/4 16,4 481,9 1000 12,1 – 4,61 – –
12×2,5/4 18,0 638,3 1000 7,41 – 4,61 – –
12×2,5/10 18,2 691,2 1000 7,41 – 1,83 – –
14×1,5/2,5 17,3 523,5 1000 12,1 – 7,41 12,0 9,5
14×1,5/4 17,3 557,0 1000 12,1 – 4,61 12,0 9,5
19×1,5/4 19,3 690,7 1000 12,1 – 4,61 11,0 9,0
30×1,5/6 23,0 987,9 1000 12,1 – 3,08 – –
Note :
Current carrying capacities are valid at 30°C ambient temperature
