Category:

tds
Code

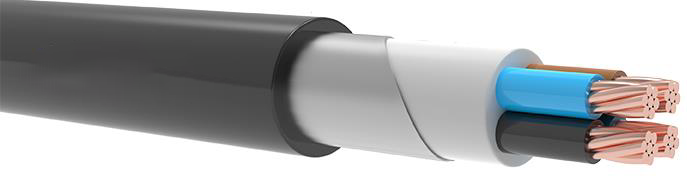

YVZ4V , NYBY , SZRMKVM       CU/PVC/STA/PVC
YVZ4(a)V , NYB(a)Y                    CU/PVC/ATA/PVC
Voltage Rating
0.6/1 kV
Standards
IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
Double Steel Tape (Double Aluminium Tape for one core cables)
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
Locations under mechanical stress, underground, in power and switching stations, industrial plants.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×25* 15,0 495,5 1000 0,727 139 119
1×35* 16,2 607,3 1000 0,524 166 146
1×50* 18,0 781,5 1000 0,387 196 177
1×70* 19,6 995,7 1000 0,268 238 221
1×95* 21,9 1301,8 1000 0,193 281 270
1×120* 23,4 1547,0 1000 0,153 315 310
1×150* 25,4 1877,7 1000 0,124 347 350
1×185* 27,7 2287,6 1000 0,0991 385 399
1×240* 30,8 2894,4 500 0,0754 432 462
1×300* 34,2 3650,5 500 0,0601 473 519
1×400* 39,4 4726,2 500 0,0470 521 583
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×1,5 12,3 297,3 1000 12,1 27 19,5
2×2,5 13,1 343,5 1000 7,41 36 26
2×4 14,8 444,7 1000 4,61 47 34
2×6 15,8 520,7 1000 3,08 59 44
2×10 18,3 710,9 1000 1,83 79 60
2×16 20,5 922,6 1000 1,15 102 80
2×25 23,7 1267,2 1000 0,727 133 108
2×35 26,0 1564,1 1000 0,524 160 132
2×50 29,8 2061,6 1000 0,387 190 160
2×70 33,7 2682,6 500 0,268 234 202
2×95 39,9 4074,5 500 0,193 280 249
2×120 43,2 4806,9 500 0,153 319 289
2×150 48,0 5892,1 500 0,124 357 329
2×185 52,5 7128,1 250 0,0991 402 377
2×240 59,2 8981,0 250 0,0754 463 443
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×1,5 12,8 328,5 1000 12,1 27 19,5
3×2,5 13,6 385,3 1000 7,41 36 26
3×4 15,5 506,3 1000 4,61 47 34
3×6 16,5 602,2 1000 3,08 59 44
3×10 19,3 853,9 1000 1,83 79 60
3×16 21,6 1127,9 1000 1,15 102 80
3×25 25,1 1541,7 1000 0,727 133 108
3×35 27,6 1924,8 1000 0,524 160 132
3×50 32,2 2611,1 1000 0,387 190 160
3×70 35,9 3375,1 500 0,268 234 202
3×95 42,5 5056,1 500 0,193 280 249
3×120 46,5 6083,9 500 0,153 319 289
3×150 51,3 7371,1 250 0,124 357 329
3×185 56,6 9035,0 250 0,0991 402 377
3×240 63,4 11335,2 250 0,0754 463 443
3×300 69,6 13983,4 250 0,0601 518 504
3×400 78,7 17451,7 250 0,0470 579 577
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×4+2,5 16,0 642,1 1000 4,61 – 7,41 47 34
3×16+10 22,8 1258,5 1000 1,15 – 1,83 102 80
3×25+16 26,3 1756,4 1000 0,727 – 1,15 133 108
3×35+16 28,5 2132,0 1000 0,524 – 1,15 160 132
3×50+25 33,5 2911,8 1000 0,387 – 0,727 190 160
3×70+35 38,7 4283,5 500 0,268 – 0,524 234 202
3×95+50 44,7 5703,6 500 0,193 – 0,387 280 249
3×120+70 48,8 6868,0 500 0,153 – 0,268 319 289
3×150+70 52,8 8099,1 500 0,124 – 0,268 357 329
3×150+10 50,6 7493,7 500 0,124 – 1,83 357 329
3×185+95 58,8 10083,3 250 0,0991 – 0,193 402 377
3×240+120 65,5 12565,2 250 0,0754 – 0,153 463 443
3×300+150 72,5 15601,1 250 0,0601 – 0,124 518 504
3×400+185 82,4 20399,9 250 0,0470 – 0,0991 579 577
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+2×10 24,6 1533,8 1000 1,15 – 1,83 102 80
3×25+2×16 33,1 2137,8 1000 0,727 – 1,15 133 108
3×35+2×16 30,5 2496,0 1000 0,524 – 1,15 160 132
3×50+2×25 36,8 3759,3 500 0,387 – 0,727 190 160
3×70+2×35 40,9 4805,1 500 0,268 – 0,524 234 202
3×95+2×50 47,4 6412,8 500 0,193 – 0,387 280 249
3×120+2×70 51,9 7811,6 250 0,153 – 0,268 319 289
3×150+2×70 55,9 9078,2 250 0,124 – 0,268 357 329
3×185+2×95 62,3 11343,1 250 0,0991 – 0,193 402 377
3×240+2×120 69,1 14071,4 250 0,0754 – 0,153 463 443
3×300+2×150 77,9 18545,4 250 0,0601 – 0,124 518 504
3×400+2×185 86,8 22806,0 250 0,0470 – 0,0991 579 577
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×1,5 13,5 373,5 1000 12,1 27 19,5
4×2,5 14,5 443,5 1000 7,41 36 26
4×4 16,6 591,3 1000 4,61 47 34
4×6 17,7 711,4 1000 3,08 59 44
4×10 20,8 1000,5 1000 1,83 79 60
4×16 23,4 1339,3 1000 1,15 102 80
4×25 27,4 1891,5 1000 0,727 133 108
4×35 30,3 2396,7 1000 0,524 160 132
4×50 35,5 3256,3 1000 0,387 190 160
4×70 40,9 4256,3 500 0,268 234 202
4×95 47,3 6309,0 500 0,193 280 249
4×120 51,3 7571,9 500 0,153 319 289
4×150 57,0 9254,5 250 0,124 357 329
4×185 62,5 11344,6 250 0,0991 402 377
4×240 70,1 14273,8 250 0,0754 463 443
4×300 77,5 17802,1 250 0,0601 518 504
4×400 88,5 23283,5 250 0,0470 579 577
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×1,5 14,4 428,1 1000 12,1 27 19,5
5×2,5 15,4 513,6 1000 7,41 36 26
5×4 17,7 694,7 1000 4,61 47 34
5×6 19,0 843,1 1000 3,08 59 44
5×10 22,5 1201,3 1000 1,83 79 60
5×16 25,4 1623,7 1000 1,15 102 80
5×25 30,0 2332,3 1000 0,727 133 108
5×35 33,7 2978,6 1000 0,524 160 132
5×50 40,2 4574,7 500 0,387 190 160
5×70 45,3 5925,1 500 0,268 234 202
5×95 51,9 7841,5 500 0,193 280 249
5×120 56,8 9451,6 250 0,153 319 289
5×150 62,7 11547,6 250 0,124 357 329
5×185 68,9 14104,7 250 0,0991 402 377
5×240 77,7 17927,3 250 0,0754 463 443
5×300 86,8 23411,6 250 0,0601 518 504
5×400 98,0 29111,6 250 0,0470 579 577
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
7×1,5 15,4 495,3 1000 12,1 – –
7×2,5 16,5 594,8 1000 7,41 – –
7×4 19,2 825,8 1000 4,61 – –
7×6 20,6 1028,6 1000 3,08 – –
10×1,5 17,1 630,4 1000 12,1 – –
10×2,5 18,5 779,2 1000 7,41 – –
10×4 21,7 1086,9 1000 4,61 – –
14×1,5 19,1 789,5 1000 12,1 – –
14×2,5 20,7 989,3 1000 7,41 – –
14×4 24,5 1401,0 1000 4,61 – –
19×1,5 21,2 977,4 1000 12,1 – –
19×2,5 23,1 1240,2 1000 7,41 – –
19×4 27,4 1778,7 1000 4,61 – –
27×1,5 24,0 1271,7 500 12,1 – –
27×2,5 26,3 1634,8 500 7,41 – –
27×4 32,3 2454,2 500 4,61 – –
30×1,5 25,0 1377,2 500 12,1 – –
30×2,5 27,4 1776,8 500 7,41 – –
30×4 33,7 2633,9 500 4,61 – –
48×1,5 30,6 2139,6 500 12,1 – –
Note 1:
* For  YVZ4(a)V , NYB(a)Y cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
