YVZ3V / NYFGBY

YVZ3V / NYFGBY

YVZ3V / NYFGBY

Category:

tds
Code

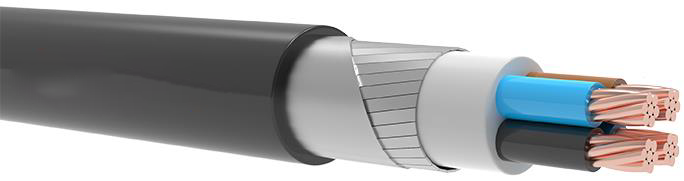

YVZ3V , NYFGbY     CU/PVC/STA/PVC
Voltage Rating
0.6/1 kV
Standards
IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Copper Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
Flat Steel Wire and Galvanized Steel Tape
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
Locations under mechanical stress, underground, in power and switching stations, industrial plants.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 19,3 868,8 1000 1,83 79 60
2×16 21,5 1107,2 1000 1,15 102 80
2×25 24,7 1483,3 1000 0,727 133 108
2×35 27,0 1814,4 1000 0,524 160 132
2×50 30,9 2358,9 1000 0,387 190 160
2×70 34,7 3054,0 500 0,268 234 202
2×95 39,7 3998,1 500 0,193 280 249
2×120 43,0 4738,0 500 0,153 319 289
2×150 47,8 5810,7 500 0,124 357 329
2×185 52,3 7057,5 250 0,0991 402 377
2×240 59,0 8959,9 250 0,0754 463 443
2×300 64,8 10973,6 250 0,0601 518 504
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 20,3 1006,3 1000 1,83 79 60
3×16 22,6 1299,4 1000 1,15 102 80
3×25 26,0 1773,5 1000 0,727 133 108
3×35 28,7 2205,4 1000 0,524 160 132
3×50 32,9 2901,2 1000 0,387 190 160
3×70 37,0 3761,1 500 0,268 234 202
3×95 42,3 4998,0 500 0,193 280 249
3×120 46,3 6005,4 500 0,153 319 289
3×150 51,1 7313,6 250 0,124 357 329
3×185 56,4 8967,3 250 0,0991 402 377
3×240 63,1 11347,4 250 0,0754 463 443
3×300 69,4 13990,9 250 0,0601 518 504
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 23,8 1463,2 1000 1,15 – 1,83 102 80
3×25+16 27,4 1990,2 1000 0,727 – 1,15 133 108
3×35+16 29,6 2401,7 1000 0,524 – 1,15 160 132
3×50+25 34,6 3267,8 1000 0,387 – 0,727 190 160
3×70+35 38,5 4189,4 500 0,268 – 0,524 234 202
3×95+50 44,1 5584,9 500 0,193 – 0,387 280 249
3×120+70 48,6 6811,6 500 0,153 – 0,268 319 289
3×150+70 52,6 8020,9 500 0,124 – 0,268 357 329
3×185+95 58,6 10026,5 250 0,0991 – 0,193 402 377
3×240+120 65,3 12589,7 250 0,0754 – 0,153 463 443
3×300+150 71,9 15529,5 250 0,0601 – 0,124 518 504
3×400+185 80,9 19356,5 250 0,0470 – 0,0991 579 577
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 21,8 1162,6 1000 1,83 79 60
4×16 24,4 1531,1 1000 1,15 102 80
4×25 28,4 2137,6 1000 0,727 133 108
4×35 31,4 2693,0 1000 0,524 160 132
4×50 36,5 3606,0 1000 0,387 190 160
4×70 40,7 4665,4 500 0,268 234 202
4×95 47,1 6292,7 500 0,193 280 249
4×120 51,1 7550,6 500 0,153 319 289
4×150 56,8 9158,2 250 0,124 357 329
4×185 62,3 11231,2 250 0,0991 402 377
4×240 69,9 14132,8 250 0,0754 463 443
4×300 77,3 17615,9 250 0,0601 518 504
4×400 87,0 21894,0 250 0,0470 579 577
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 23,5 1393,2 1000 1,83 79 60
5×16 26,4 1850,8 1000 1,15 102 80
5×25 31,0 2614,6 1000 0,727 133 108
5×35 34,7 3367,8 1000 0,524 160 132
5×50 40,0 4467,9 500 0,387 190 160
5×70 45,1 5809,9 500 0,268 234 202
5×95 51,7 7857,4 500 0,193 280 249
5×120 56,6 9425,6 250 0,153 319 289
5×150 62,5 11616,2 250 0,124 357 329
5×185 68,7 14301,5 250 0,0991 402 377
5×240 77,5 18208,2 250 0,0754 463 443
5×300 85,3 22544,2 250 0,0601 518 504
5×400 96,6 28285,4 250 0,0470 579 577
Note :
Current carrying capacities are valid at 30°C ambient temperature.
