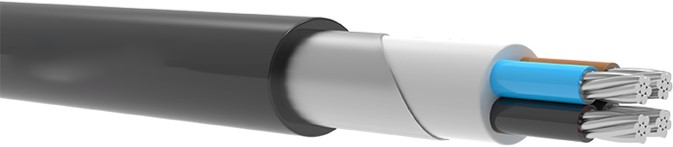

YAXZ4V / NA2XBY

YAXZ4V / NA2XBY

YAXZ4V / NA2XBY

Category:

tds
Code
YAXZ4V ,  NA2XBY ,                  AL/XLPE/STA/PVC
YAXZ4(a)V ,  NA2XB(a)Y ,       AL/XLPE/ATA/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
PVC Filler
Armour
Double Steel Tape (Double Aluminium Tape for one core cables)
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 * 11,0 204,2 1000 3,08 – –
1×16 * 12,1 243,2 1000 1,91 – –
1×25 * 13,7 304,8 1000 1,20 116 112
1×35 * 14,7 357,5 1000 0,868 138 137
1×50 * 16,1 419,7 1000 0,641 164 169
1×70 * 18,2 523,0 1000 0,443 201 214
1×95 * 19,7 631,9 1000 0,320 240 263
1×120 * 21,2 734,3 1000 0,253 272 308
1×150 * 24,2 985,8 1000 0,206 303 349
1×185 * 26,4 1163,0 1000 0,164 340 401
1×240 * 28,9 1394,1 500 0,125 387 469
1×300 * 32,1 1727,0 500 0,100 430 535
1×400 * 35,7 2147,6 500 0,0778 479 615
1×500 * 39,4 2577,5 250 0,0605 531 700
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 16,2 502,3 1000 3,08 – –
2×16 18,2 626,9 1000 1,91 – –
2×25 21,3 830,1 1000 1,20 113 104
2×35 23,4 1005,2 1000 0,868 136 128
2×50 26,2 1227,0 1000 0,641 159 152
2×70 30,6 1660,0 500 0,443 197 194
2×95 34,9 2517,9 500 0,320 236 239
2×120 38,2 2962,1 500 0,253 269 278
2×150 43,8 3697,3 500 0,206 302 316
2×185 48,4 4425,2 250 0,164 342 365
2×240 53,5 5383,4 250 0,125 397 430
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 17,0 548,7 1000 3,08 – –
3×16 19,1 687,2 1000 1,91 – –
3×25 22,5 918,0 1000 1,20 113 104
3×35 24,8 1125,6 1000 0,868 136 128
3×50 27,9 1372,4 1000 0,641 159 152
3×70 33,1 1871,6 500 0,443 197 194
3×95 37,3 2840,8 500 0,320 236 239
3×120 40,8 3403,4 500 0,253 269 278
3×150 46,8 4180,0 250 0,206 302 316
3×185 51,8 4985,9 250 0,164 342 365
3×240 57,7 6099,8 250 0,125 397 430
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 20,1 755,0 1000 1,91 – 3,08 – –
3×25+16 23,6 1008,8 1000 1,20 – 1,91 113 104
3×35+16 25,4 1187,7 1000 0,868 – 1,91 136 128
3×50+25 29,1 1493,4 1000 0,641 – 1,20 159 152
3×70+35 34,3 2022,9 500 0,443 – 0,868 197 194
3×95+50 38,7 3021,9 500 0,320 – 0,641 236 239
3×120+70 43,5 3757,5 500 0,253 – 0,443 269 278
3×150+70 48,2 4369,2 500 0,206 – 0,443 302 316
3×185+95 53,8 5379,2 250 0,164 – 0,320 342 365
3×240+120 59,4 6463,2 250 0,125 – 0,253 397 430
3×300+150 66,0 7898,1 250 0,100 – 0,206 454 506
3×400+185 75,0 10971,8 250 0,0778 – 0,164 520 575
3×70+50 35,2 2114,1 500 0,443 – 0,641 197 194
3×240+95 58,5 6324,3 250 0,125 – 0,320 397 430
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 18,4 634,9 1000 3,08 – –
4×16 20,7 798,5 1000 1,91 – –
4×25 24,5 1074,9 1000 1,20 113 104
4×35 27,1 1322,4 1000 0,868 136 128
4×50 31,1 1700,5 1000 0,641 159 152
4×70 37,2 2757,5 500 0,443 197 194
4×95 41,1 3366,3 500 0,320 236 239
4×120 45,5 4058,8 500 0,253 269 278
4×150 51,7 4969,2 250 0,206 302 316
4×185 57,7 6087,8 250 0,164 342 365
4×240 63,9 7335,6 250 0,125 397 430
4×300 71,0 9095,2 250 0,100 454 506
4×400 80,4 12480,1 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 19,8 732,4 1000 3,08 – –
5×16 22,4 934,6 1000 1,91 – –
5×25 26,7 1279,2 1000 1,20 113 104
5×35 29,7 1604,7 1000 0,868 136 128
5×50 34,8 2509,7 500 0,641 159 152
5×70 40,8 3300,1 500 0,443 197 194
5×95 45,6 4128,8 500 0,320 236 239
5×120 50,1 4920,0 250 0,253 269 278
5×150 57,4 6153,6 250 0,206 302 316
5×185 63,6 7435,6 250 0,164 342 365
5×240 70,5 9002,1 250 0,125 397 430
5×300 79,1 12241,3 250 0,100 454 506
5×400 88,8 15270,7 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+2×10 21,4 846,4 1000 1,91 – 3,08 – –
3×25+2×16 25,0 1124,8 1000 1,20 – 1,91 113 104
3×35+2×16 26,7 1294,1 1000 0,868 – 1,91 136 128
3×50+2×25 31,6 2088,2 1000 0,641 – 1,20 159 152
3×70+2×35 36,8 2705,9 500 0,443 – 0,868 197 194
3×95+2×50 41,0 3357,1 500 0,320 – 0,641 236 239
3×120+2×70 46,5 4190,6 500 0,253 – 0,443 269 278
3×150+2×70 50,7 4798,8 500 0,206 – 0,443 302 316
3×185+2×95 56,6 5911,9 250 0,164 – 0,320 342 365
3×240+2×120 62,5 7112,7 250 0,125 – 0,253 397 430
3×300+2×150 70,4 9668,5 250 0,100 – 0,206 454 506
3×400+2×185 79,1 11018,1 250 0,0778 – 0,164 520 575
Note 1:
* For YAXZ4(a)V , NA2XB(a)Y cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
