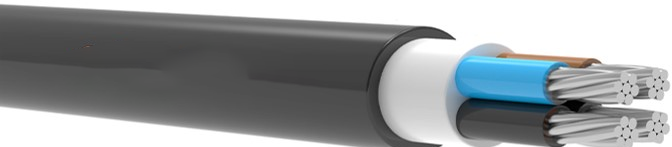

NA2XY , YAXV            AL/XLPE/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276, SI 1516.1
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
PVC Filler
Armour
–
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage. Suitable for comparatively high maximum pemissible
conductor temperature.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 7,9 89,7 1000 3,08 – –
1×16 8,9 118,7 1000 1,91 – –
1×25 10,5 155,8 1000 1,20 114 106
1×35 11,5 201,2 1000 0,868 136 130
1×50 12,8 239,4 1000 0,641 162 161
1×70 15,0 314,1 1000 0,443 199 204
1×95 16,6 416,4 1000 0,320 238 252
1×120 18,3 499,3 1000 0,253 272 295
1×150 20,9 611,6 1000 0,206 305 339
1×185 23,2 783,5 1000 0,164 347 395
1×240 25,7 960,0 1000 0,125 404 472
1×300 28,5 1216,2 1000 0,100 457 547
1×400 32,1 1573,5 1000 0,0778 525 643
1×500 35,8 1942,1 500 0,0605 601 754
1×630 40,3 2440,0 500 0,0469 687 882
1×800 44,7 3035,3 500 0,0367 776 1019
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 14,8 320,3 1000 3,08 – –
2×16 16,8 418,9 1000 1,91 – –
2×25 19,9 589,0 1000 1,20 112 102
2×35 22,2 735,3 1000 0,868 135 126
2×50 25,2 934,7 1000 0,641 158 149
2×70 29,7 1284,0 1000 0,443 196 191
2×95 32,9 1618,9 1000 0,320 234 234
2×120 36,6 2005,7 1000 0,253 268 273
2×150 41,7 2533,7 1000 0,206 300 311
2×185 46,8 3170,9 1000 0,164 342 360
2×240 51,8 3932,5 500 0,125 398 427
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 15,6 360,5 1000 3,08 – –
3×16 17,7 488,5 1000 1,91 – –
3×25 21,1 688,8 1000 1,20 112 102
3×35 23,6 828,2 1000 0,868 135 126
3×50 26,6 1022,5 1000 0,641 158 149
3×70 31,9 1449,2 1000 0,443 196 191
3×95 35,3 1849,3 1000 0,320 234 234
3×120 39,3 2279,6 1000 0,253 268 273
3×150 44,9 2862,0 500 0,206 300 311
3×185 50,3 3513,1 500 0,164 342 360
3×240 55,8 4191,0 500 0,125 398 427
3×300 62,6 5368,1 250 0,100 457 507
3×400 70,4 7707,1 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 18,7 528,9 1000 1,91 – 3,08 – –
3×25+16 22,2 689,7 1000 1,20 – 1,91 112 102
3×35+16 24,3 872,3 1000 0,868 – 1,91 135 126
3×35+25 25,2 917,5 1000 0,868 – 1,20 135 126
3×50+25 27,7 1088,2 1000 0,641 – 1,20 158 149
3×50+35 28,5 1160,8 1000 0,641 – 0,868 158 149
3×70+35 32,9 1499,4 1000 0,443 – 0,868 196 191
3×70+50 33,8 1592,5 1000 0,443 – 0,641 196 191
3×95+50 36,8 1940,7 1000 0,320 – 0,641 234 234
3×120+70 41,5 2385,7 500 0,253 – 0,443 268 273
3×150+70 46,2 2951,3 500 0,206 – 0,443 300 311
3×185+70 50,8 3747,1 500 0,164 – 0,443 342 360
3×185+95 51,7 3798,1 500 0,164 – 0,320 342 360
3×240+95 56,4 4638,7 250 0,125 – 0,320 398 427
3×240+120 57,4 4642,6 250 0,125 – 0,253 398 427
3×300+120 62,8 5874,5 250 0,100 – 0,253 457 507
3×300+150 64,3 5708,7 250 0,100 – 0,206 457 507
3×400+185 72,3 7604,9 250 0,0778 – 0,164 529 600
3×500+240 80,6 9705,1 250 0,0605 – 0,125 609 695
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 17,0 410,8 1000 3,08 – –
4×16 19,3 553,1 1000 1,91 – –
4×25 23,1 788,4 1000 1,20 112 102
4×35 25,8 979,0 1000 0,868 135 126
4×50 29,4 1216,0 1000 0,641 158 149
4×70 35,2 1682,5 1000 0,443 196 191
4×95 39,1 2178,6 1000 0,320 234 234
4×120 43,6 2704,4 500 0,253 268 273
4×150 49,8 3382,8 500 0,206 300 311
4×185 55,8 4285,7 500 0,164 342 360
4×240 61,9 5104,1 250 0,125 398 427
4×300 69,1 6591,2 250 0,100 457 507
4×400 77,8 8644,3 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 18,4 599,4 1000 3,08 – –
5×16 21,0 755,3 1000 1,91 – –
5×25 25,3 1031,3 1000 1,20 112 102
5×35 28,4 1328,8 1000 0,868 135 126
5×50 32,4 1614,0 1000 0,641 158 149
5×70 38,9 2128,3 500 0,443 196 191
5×95 43,2 2772,8 500 0,320 234 234
5×120 48,1 3411,5 500 0,253 268 273
5×150 55,0 4340,6 500 0,206 300 311
5×185 61,7 5329,5 250 0,164 342 360
5×240 68,6 6528,8 250 0,125 398 427
5×300 76,5 8248,5 250 0,100 457 507
5×400 86,2 10779,1 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 20,5 629,1 1000 1,91 – 3,08 – –
4×25+16 24,4 880,0 1000 1,20 – 1,91 112 102
4×35+16 26,9 1099,9 1000 0,868 – 1,91 135 126
4×50+25 31,0 1418,6 1000 0,641 – 1,20 158 149
4×70+35 36,9 1983,7 1000 0,443 – 0,868 196 191
4×95+50 41,2 2569,3 1000 0,320 – 0,641 234 234
4×120+70 46,4 3270,3 500 0,253 – 0,443 268 273
4×150+70 51,9 3944,4 500 0,206 – 0,443 300 311
4×185+95 58,2 4995,3 500 0,164 – 0,320 342 360
4×240+120 64,6 6184,4 250 0,125 – 0,253 398 427
4×300+150 72,4 7872,2 250 0,100 – 0,206 457 507
4×400+185 81,4 10091,1 250 0,0778 – 0,164 529 600
Note :
Current carrying capacities are valid at 30°C ambient temperature
