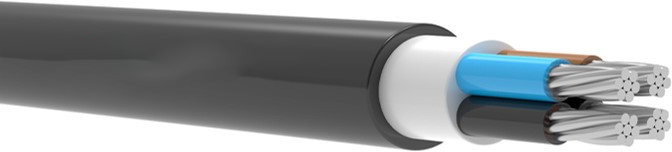

YAXV FR3 / NA2XY FR3

YAXV FR3 / NA2XY FR3

YAXV FR3 / NA2XY FR3

Category:

tds
Code
YAXV FR3,   NA2XY FR3 ,    AL/XLPE/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276, SI 1516.1
IEC 60228 Conductor
IEC 60332-3-24 Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
PVC Filler   Cat C
Armour
–
Sheath
PVC (Polyvinyl Chloride)    Cat C
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
Used in energy networks in refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing
centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 7,9 89,7 1000 3,08 – –
1×16 8,9 118,7 1000 1,91 – –
1×25 10,5 155,8 1000 1,20 114 106
1×35 11,5 201,2 1000 0,868 136 130
1×50 12,8 239,4 1000 0,641 162 161
1×70 15,0 314,1 1000 0,443 199 204
1×95 16,6 416,4 1000 0,320 238 252
1×120 18,3 499,3 1000 0,253 272 295
1×150 20,9 611,6 1000 0,206 305 339
1×185 23,2 783,5 1000 0,164 347 395
1×240 25,7 960,0 1000 0,125 404 472
1×300 28,5 1216,2 1000 0,100 457 547
1×400 32,1 1573,5 1000 0,0778 525 643
1×500 35,8 1942,1 500 0,0605 601 754
1×630 40,3 2440,0 500 0,0469 687 882
1×800 44,7 3035,3 500 0,0367 776 1019
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 14,8 320,3 1000 3,08 – –
2×16 16,8 418,9 1000 1,91 – –
2×25 19,9 589,0 1000 1,20 112 102
2×35 22,2 735,3 1000 0,868 135 126
2×50 25,2 934,7 1000 0,641 158 149
2×70 29,7 1284,0 1000 0,443 196 191
2×95 32,9 1618,9 1000 0,320 234 234
2×120 36,6 2005,7 1000 0,253 268 273
2×150 41,7 2533,7 1000 0,206 300 311
2×185 46,8 3170,9 1000 0,164 342 360
2×240 51,8 3932,5 500 0,125 398 427
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 15,6 360,5 1000 3,08 – –
3×16 17,7 488,5 1000 1,91 – –
3×25 21,1 688,8 1000 1,20 112 102
3×35 23,6 828,2 1000 0,868 135 126
3×50 26,6 1022,5 1000 0,641 158 149
3×70 31,9 1449,2 1000 0,443 196 191
3×95 35,3 1849,3 1000 0,320 234 234
3×120 39,3 2279,6 1000 0,253 268 273
3×150 44,9 2862,0 500 0,206 300 311
3×185 50,3 3513,1 500 0,164 342 360
3×240 55,8 4191,0 500 0,125 398 427
3×300 62,6 5368,1 250 0,100 457 507
3×400 70,4 7707,1 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 18,7 528,9 1000 1,91 – 3,08 – –
3×25+16 22,2 689,7 1000 1,20 – 1,91 112 102
3×35+16 24,3 872,3 1000 0,868 – 1,91 135 126
3×35+25 25,2 917,5 1000 0,868 – 1,20 135 126
3×50+25 27,7 1088,2 1000 0,641 – 1,20 158 149
3×50+35 28,5 1160,8 1000 0,641 – 0,868 158 149
3×70+35 32,9 1499,4 1000 0,443 – 0,868 196 191
3×70+50 33,8 1592,5 1000 0,443 – 0,641 196 191
3×95+50 36,8 1940,7 1000 0,320 – 0,641 234 234
3×120+70 41,5 2385,7 500 0,253 – 0,443 268 273
3×150+70 46,2 2951,3 500 0,206 – 0,443 300 311
3×185+70 50,8 3747,1 500 0,164 – 0,443 342 360
3×185+95 51,7 3798,1 500 0,164 – 0,320 342 360
3×240+95 56,4 4638,7 250 0,125 – 0,320 398 427
3×240+120 57,4 4642,6 250 0,125 – 0,253 398 427
3×300+120 62,8 5874,5 250 0,100 – 0,253 457 507
3×300+150 64,3 5708,7 250 0,100 – 0,206 457 507
3×400+185 72,3 7604,9 250 0,0778 – 0,164 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 17,0 410,8 1000 3,08 – –
4×16 19,3 553,1 1000 1,91 – –
4×25 23,1 788,4 1000 1,20 112 102
4×35 25,8 979,0 1000 0,868 135 126
4×50 29,4 1216,0 1000 0,641 158 149
4×70 35,2 1682,5 1000 0,443 196 191
4×95 39,1 2178,6 1000 0,320 234 234
4×120 43,6 2704,4 500 0,253 268 273
4×150 49,8 3382,8 500 0,206 300 311
4×185 55,8 4285,7 500 0,164 342 360
4×240 61,9 5104,1 250 0,125 398 427
4×300 69,1 6591,2 250 0,100 457 507
4×400 77,8 8644,3 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 18,4 599,4 1000 3,08 – –
5×16 21,0 755,3 1000 1,91 – –
5×25 25,3 1031,3 1000 1,20 112 102
5×35 28,4 1328,8 1000 0,868 135 126
5×50 32,4 1614,0 1000 0,641 158 149
5×70 38,9 2128,3 500 0,443 196 191
5×95 43,2 2772,8 500 0,320 234 234
5×120 48,1 3411,5 500 0,253 268 273
5×150 55,0 4340,6 500 0,206 300 311
5×185 61,7 5329,5 250 0,164 342 360
5×240 68,6 6528,8 250 0,125 398 427
5×300 76,5 8248,5 250 0,100 457 507
5×400 86,2 10779,1 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 20,5 629,1 1000 1,91 – 3,08 – –
4×25+16 24,4 880,0 1000 1,20 – 1,91 112 102
4×35+16 26,9 1099,9 1000 0,868 – 1,91 135 126
4×50+25 31,0 1418,6 1000 0,641 – 1,20 158 149
4×70+35 36,9 1983,7 1000 0,443 – 0,868 196 191
4×95+50 41,2 2569,3 1000 0,320 – 0,641 234 234
4×120+70 46,4 3270,3 500 0,253 – 0,443 268 273
4×150+70 51,9 3944,4 500 0,206 – 0,443 300 311
4×185+95 58,2 4995,3 500 0,164 – 0,320 342 360
4×240+120 64,6 6184,4 250 0,125 – 0,253 398 427
4×300+150 72,4 7872,2 250 0,100 – 0,206 457 507
4×400+185 81,4 10091,1 250 0,0778 – 0,164 529 600
Note :
Current carrying capacities are valid at 30°C ambient temperature
