YAVZ4V / NAYBY

YAVZ4V / NAYBY

YAVZ4V / NAYBY

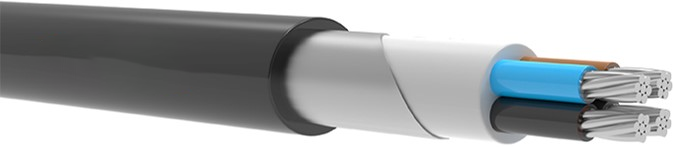

Category:

tds
Code
YAVZ4V , NAYBY                             AL/PVC/STA/PVC
YAVZ4(a)V , NAYB(a)Y                  AL/PVC/ATA/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
Double Steel Tape (Double Aluminium Tape for one core cables)
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In the Ground at 20°C In the Air at 30°C
1×10* 11,7 217,7 1000 3,08 – –
1×16* 12,7 259,4 1000 1,91 – –
1×25* 14,3 330,7 1000 1,20 108 91
1×35* 15,3 385,4 1000 0,868 129 112
1×50* 16,9 451,2 1000 0,641 153 137
1×70* 18,8 565,1 1000 0,443 187 173
1×95* 21,3 774,2 1000 0,320 223 212
1×120* 22,6 890,2 1000 0,253 252 247
1×150* 25,0 1060,6 1000 0,206 280 280
1×185* 27,4 1266,0 1000 0,164 314 321
1×240* 30,2 1533,9 500 0,125 358 374
1×300* 33,5 1929,6 500 0,100 397 426
1×400* 37,1 2376,1 500 0,0778 441 488
1×500* 40,8 2850,2 250 0,0605 489 556
1×1000* 56,7 5176,0 250 0,0291 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In the Ground at 20°C In the Air at 30°C
2×10 17,4 600,3 1000 3,08 – –
2×16 19,4 737,6 1000 1,91 – –
2×25 22,5 971,3 1000 1,20 103 83
2×35 24,6 1158,1 1000 0,868 123 101
2×50 27,9 1433,5 1000 0,641 145 121
2×70 32,3 1888,0 500 0,443 180 155
2×95 37,1 2880,2 500 0,320 216 189
2×120 39,9 3299,6 500 0,253 246 220
2×150 45,5 4096,2 500 0,206 276 249
2×185 50,1 4900,8 250 0,164 313 287
2×240 56,0 6035,1 250 0,125 362 339
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In the Ground at 20°C In the Air at 30°C
3×10 18,3 669,7 1000 3,08 – –
3×16 20,4 824,4 1000 1,91 – –
3×25 23,8 1097,8 1000 1,20 103 83
3×35 26,0 1320,4 1000 0,868 123 101
3×50 29,7 1645,6 1000 0,641 145 121
3×70 34,5 2162,3 500 0,443 180 155
3×95 39,6 3283,4 500 0,320 216 189
3×120 43,1 3828,3 500 0,253 246 220
3×150 48,6 4686,1 250 0,206 276 249
3×185 53,6 5586,0 250 0,164 313 287
3×240 60,0 6920,8 250 0,125 362 339
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In the Ground at 20°C In the Air at 30°C
3×16+10 21,6 879,7 1000 1,91 – 3,08 – –
3×25+16 25,0 1162,7 1000 1,20 – 1,91 103 83
3×35+16 26,9 1350,1 1000 0,868 – 1,91 123 101
3×50+25 31,5 1730,2 1000 0,641 – 1,20 145 121
3×70+35 36,5 2732,1 500 0,443 – 0,868 180 155
3×95+50 41,2 3404,5 500 0,320 – 0,641 216 189
3×120+70 45,5 4091,8 500 0,253 – 0,443 246 220
3×150+70 50,1 4835,8 500 0,206 – 0,443 276 249
3×185+95 56,0 5912,1 250 0,164 – 0,320 313 287
3×240+120 61,8 7154,3 250 0,125 – 0,253 362 339
3×300+150 68,8 8834,1 250 0,100 – 0,206 415 401
3×400+185 77,8 12059,8 250 0,0778 – 0,164 474 468
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In the Ground at 20°C In the Air at 30°C
4×10 19,8 781,8 1000 3,08 – –
4×16 22,2 973,4 1000 1,91 – –
4×25 26,0 1305,9 1000 1,20 103 83
4×35 28,6 1589,8 1000 0,868 123 101
4×50 33,2 2037,6 1000 0,641 145 121
4×70 38,7 3117,2 500 0,443 180 155
4×95 44,1 4016,6 500 0,320 216 189
4×120 47,6 4624,1 500 0,253 246 220
4×150 53,8 5661,3 250 0,206 276 249
4×185 59,8 6850,5 250 0,164 313 287
4×240 66,4 8388,7 250 0,125 362 339
4×300 74,1 10573,5 250 0,100 415 401
4×400 83,5 14177,5 250 0,0778 474 468
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In the Ground at 20°C In the Air at 30°C
5×10 21,4 913,3 1000 3,08 – –
5×16 24,1 1149,6 1000 1,91 – –
5×25 28,4 1572,6 1000 1,20 103 83
5×35 31,8 1965,6 1000 0,868 123 101
5×50 37,1 2952,5 500 0,641 145 121
5×70 42,5 3747,5 500 0,443 180 155
5×95 48,5 4855,0 500 0,320 216 189
5×120 52,4 5594,9 250 0,253 246 220
5×150 59,7 6979,8 250 0,206 276 249
5×185 65,9 8389,5 250 0,164 313 287
5×240 73,8 10399,4 250 0,125 362 339
5×300 82,5 14129,0 250 0,100 415 401
5×400 92,7 17526,9 250 0,0778 474 468
Note 1:
* For YAVZ4(a)V , NAYB(a)Y cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
