Category:
Code

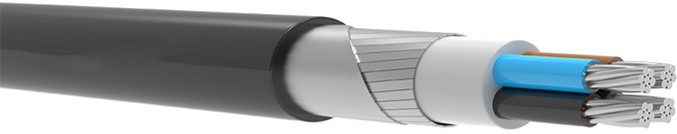

YAVZ3V , NAYFGbY         AL/PVC/STA/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
Flat Steel Wire and Galvanized Steel Tape
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground, in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×50 18,3 479,6 1000 0,641 153 137
1×70 20,2 594,3 1000 0,443 187 173
1×95 22,1 725,7 1000 0,320 223 212
1×120 23,4 834,5 1000 0,253 252 247
1×150 25,8 998,7 1000 0,206 280 280
1×185 28,1 1195,5 1000 0,164 314 321
1×240 30,8 1444,2 500 0,125 358 374
1×300 34,3 1847,8 500 0,100 397 426
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 18,8 728,9 1000 3,08 – –
2×16 20,8 875,7 1000 1,91 – –
2×25 23,9 1132,2 1000 1,20 103 83
2×35 25,9 1326,3 1000 0,868 123 101
2×50 29,4 1623,5 1000 0,641 145 121
2×70 33,8 2093,3 500 0,443 180 155
2×95 37,9 2606,6 500 0,320 216 189
2×120 40,8 3009,5 500 0,253 246 220
2×150 46,3 3763,8 500 0,206 276 249
2×185 51,0 4483,2 250 0,164 313 287
2×240 56,9 5536,5 250 0,125 362 339
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 19,7 798,7 1000 3,08 – –
3×16 21,8 967,0 1000 1,91 – –
3×25 25,2 1260,8 1000 1,20 103 83
3×35 27,5 1487,0 1000 0,868 123 101
3×50 31,2 1834,2 1000 0,641 145 121
3×70 36,0 2372,4 500 0,443 180 155
3×95 40,4 2966,2 500 0,320 216 189
3×120 44,0 3496,0 500 0,253 246 220
3×150 49,5 4291,2 250 0,206 276 249
3×185 54,5 5125,0 250 0,164 313 287
3×240 60,9 6344,6 250 0,125 362 339
3×300 67,3 7836,9 250 0,100 415 401
3×400 75,5 9722,1 250 0,0778 474 468
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 23,0 1064,6 1000 1,91 – 3,08 – –
3×25+16 26,4 1378,6 1000 1,20 – 1,91 103 83
3×35+16 28,4 1594,7 1000 0,868 – 1,91 123 101
3×50+25 33,0 2027,2 1000 0,641 – 1,20 145 121
3×70+35 37,3 2565,9 500 0,443 – 0,868 180 155
3×95+50 42,1 3188,1 500 0,320 – 0,641 216 189
3×120+70 46,3 3840,5 500 0,253 – 0,443 246 220
3×150+70 51,0 4538,6 500 0,206 – 0,443 276 249
3×185+95 56,8 5579,7 250 0,164 – 0,320 313 287
3×240+120 62,7 6771,3 250 0,125 – 0,253 362 339
3×300+150 69,7 8395,4 250 0,100 – 0,206 415 401
3×400+185 78,0 10496,7 250 0,0778 – 0,164 474 468
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 21,2 892,8 1000 3,08 – –
4×16 23,6 1095,3 1000 1,91 – –
4×25 27,5 1449,7 1000 1,20 103 83
4×35 30,1 1741,4 1000 0,868 123 101
4×50 34,7 2198,8 1000 0,641 145 121
4×70 39,6 2802,1 500 0,443 180 155
4×95 44,9 3580,5 500 0,320 216 189
4×120 48,4 4165,9 500 0,253 246 220
4×150 54,6 5127,2 250 0,206 276 249
4×185 60,6 6256,3 250 0,164 313 287
4×240 67,3 7671,3 250 0,125 362 339
4×300 75,0 9653,3 250 0,100 415 401
4×400 83,7 12015,0 250 0,0778 474 468
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 22,8 1069,2 1000 3,08 – –
5×16 25,5 1327,4 1000 1,91 – –
5×25 29,9 1799,4 1000 1,20 103 83
5×35 33,3 2219,0 1000 0,868 123 101
5×50 38,0 2760,5 500 0,641 145 121
5×70 43,4 3573,1 500 0,443 180 155
5×95 49,3 4554,7 500 0,320 216 189
5×120 53,2 5349,6 250 0,253 246 220
5×150 60,6 6700,9 250 0,206 276 249
5×185 66,8 8103,4 250 0,164 313 287
5×240 74,7 10110,8 250 0,125 362 339
5×300 82,7 12572,2 250 0,100 415 401
5×400 92,9 15867,0 250 0,0778 474 468
Note :
Current carrying capacities are valid at 30°C ambient temperature
