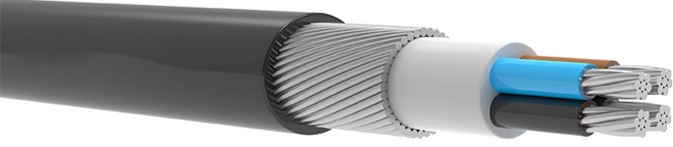

YAVZ2V , NAYRY                   AL/PVC/SWA/PVC
YAVZ2(a)V , NAYR(a)Y         AL/PVC/AWA/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
Round Steel Wire (Aluminium Wire for One Core Cables)
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10* 12,9 240,6 1000 3,08 – –
1×16* 13,9 281,7 1000 1,91 – –
1×25* 16,4 392,6 1000 1,20 108 91
1×35* 17,4 450,7 1000 0,868 129 112
1×50* 19,0 518,7 1000 0,641 153 137
1×70* 20,9 639,4 1000 0,443 187 173
1×95* 23,5 814,0 1000 0,320 223 212
1×120* 24,8 928,7 1000 0,253 252 247
1×150* 27,2 1101,7 1000 0,206 280 280
1×185* 29,6 1301,6 1000 0,164 314 321
1×240* 33,2 1639,3 500 0,125 358 374
1×300* 36,6 2048,7 500 0,100 397 426
1×400* 40,2 2505,1 500 0,0778 441 488
1×500* 43,9 3014,0 500 0,0605 489 556
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 19,5 781,2 1000 3,08 – –
2×16 22,2 1030,5 1000 1,91 – –
2×25 25,3 1332,5 1000 1,20 103 83
2×35 27,4 1532,6 1000 0,868 123 101
2×50 30,9 1894,8 1000 0,641 145 121
2×70 36,2 2593,5 500 0,443 180 155
2×95 40,3 3197,9 500 0,320 216 189
2×120 44,2 3993,1 500 0,253 246 220
2×150 49,8 4847,8 500 0,206 276 249
2×185 54,4 5778,8 250 0,164 313 287
2×240 60,3 6883,3 250 0,125 362 339
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 21,1 940,7 1000 3,08 – –
3×16 23,2 1140,3 1000 1,91 – –
3×25 26,6 1479,5 1000 1,20 103 83
3×35 29,0 1763,4 1000 0,868 123 101
3×50 33,6 2317,8 1000 0,641 145 121
3×70 38,4 2905,5 500 0,443 180 155
3×95 42,8 3630,6 500 0,320 216 189
3×120 47,4 4624,6 500 0,253 246 220
3×150 52,9 5541,1 250 0,206 276 249
3×185 57,9 6480,4 250 0,164 313 287
3×240 64,3 7693,2 250 0,125 362 339
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 24,4 1216,7 1000 1,91 – 3,08 – –
3×25+16 27,9 1566,0 1000 1,20 – 1,91 103 83
3×35+16 29,9 1786,4 1000 0,868 – 1,91 123 101
3×50+25 34,9 2445,3 1000 0,641 – 1,20 145 121
3×70+35 39,7 3039,4 500 0,443 – 0,868 180 155
3×95+50 45,5 4131,1 500 0,320 – 0,641 216 189
3×120+70 49,7 4925,5 500 0,253 – 0,268 246 220
3×150+70 54,4 5713,8 250 0,206 – 0,268 276 249
3×185+95 60,2 6762,4 250 0,164 – 0,320 313 287
3×240+120 66,1 7893,2 250 0,125 – 0,253 362 339
3×300+150 74,5 10688,9 250 0,100 – 0,206 415 401
3×400+185 82,8 12677,7 250 0,0778 – 0,164 474 468
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 22,6 1103,2 1000 3,08 – –
4×16 25,0 1337,3 1000 1,91 – –
4×25 28,9 1749,8 1000 1,20 103 83
4×35 32,5 2269,9 1000 0,868 123 101
4×50 37,0 2839,1 1000 0,641 145 121
4×70 41,9 3482,1 500 0,443 180 155
4×95 48,4 4768,0 500 0,320 216 189
4×120 51,9 5469,3 500 0,253 246 220
4×150 58,0 6551,4 250 0,206 276 249
4×185 64,1 7627,0 250 0,164 313 287
4×240 70,7 9039,0 250 0,125 362 339
4×300 79,8 12293,2 250 0,100 415 401
4×400 88,5 14619,7 250 0,0778 474 468
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 24,2 1252,3 1000 3,08 – –
5×16 27,1 1544,6 1000 1,91 – –
5×25 32,3 2203,5 1000 1,20 103 83
5×35 35,9 2747,3 1000 0,868 123 101
5×50 40,4 3372,8 500 0,641 145 121
5×70 46,9 4473,5 500 0,443 180 155
5×95 52,9 5712,1 500 0,320 216 189
5×120 56,7 6543,5 250 0,253 246 220
5×150 63,9 7758,5 250 0,206 276 249
5×185 70,2 9048,3 250 0,164 313 287
5×240 79,5 12168,5 250 0,125 362 339
5×300 87,8 14698,9 250 0,100 415 401
5×400 98,0 17798,4 250 0,0778 474 468
Note 1:
* For YAVZ2(a)V , NAYR(a)Y cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
