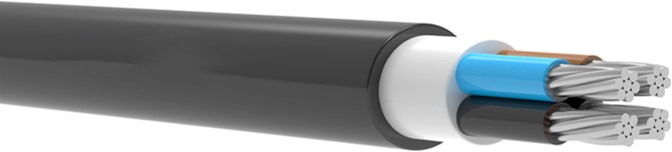

YAVV UV / NAYY UV

YAVV UV / NAYY UV

YAVV UV / NAYY UV

Category:

tds
Code
YAVV , NAYY      AL/PVC/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Solid Aluminum Conductor (Class 1)
Stranded Aluminum Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
–
Sheath
PVC (Polyvinyl Chloride) – UV Resistance
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 8,5 107,8 1000 3,08 – –
1×16 9,5 136,9 1000 1,91 – –
1×25 11,1 193,3 1000 1,20 106 87
1×35 12,1 235,8 1000 0,868 127 107
1×50 13,7 280,3 1000 0,641 151 131
1×70 15,7 355,7 1000 0,443 185 166
1×95 17,7 466,1 1000 0,320 222 205
1×120 19,2 578,2 1000 0,253 253 239
1×150 21,7 700,0 1000 0,206 284 273
1×185 24,0 871,9 1000 0,164 322 317
1×240 26,8 1087,6 1000 0,125 375 378
1×300 29,8 1415,2 1000 0,100 425 437
1×400 33,4 1797,3 1000 0,0778 487 513
1×500 37,1 2205,0 500 0,0605 558 600
1×630 41,0 2661,7 500 0,0469 635 701
1×800 45,1 3295,1 250 0,0367 716 809
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×4 re * 13,0 252,1 1000 7,22 – –
2×6 re * 14,0 294,3 1000 4,81 – –
2×10 16,0 348,2 1000 3,08 – –
2×16 18,0 449,1 1000 1,91 – –
2×25 21,1 647,1 1000 1,20 102 82
2×35 23,4 806,4 1000 0,868 123 100
2×50 26,6 936,5 1000 0,641 144 119
2×70 31,1 1337,0 1000 0,443 179 152
2×95 35,1 1715,4 1000 0,320 215 186
2×120 38,4 2070,5 1000 0,253 245 216
2×150 43,6 2615,4 1000 0,206 275 246
2×185 48,6 3236,3 1000 0,164 313 285
2×240 54,1 4042,7 500 0,125 364 338
2×300 60,1 5093,1 500 0,100 419 400
2×400 67,7 6481,3 500 0,0778 484 472
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 16,9 405,8 1000 3,08 – –
3×16 19,0 519,0 1000 1,91 – –
3×25 22,4 718,5 1000 1,20 102 82
3×35 24,9 920,9 1000 0,868 123 100
3×50 28,5 1101,6 1000 0,641 144 119
3×70 33,2 1481,4 1000 0,443 179 152
3×95 37,7 1982,5 1000 0,320 215 186
3×120 41,2 2366,5 1000 0,253 245 216
3×150 46,7 3102,2 500 0,206 275 246
3×185 52,1 3840,3 500 0,164 313 285
3×240 58,1 4809,2 500 0,125 364 338
3×300 64,5 6221,4 250 0,100 419 400
3×400 72,7 7771,4 250 0,0778 484 472
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10+6 * 17,8 489,2 1000 3,08 – 4,81 – –
3×16+10 20,2 610,1 1000 1,91 – 3,08 – –
3×25+16 23,6 823,6 1000 1,20 – 1,91 102 82
3×35+16 25,7 1016,8 1000 0,868 – 1,91 123 100
3×50+25 29,8 1284,3 1000 0,641 – 1,20 144 119
3×70+35 34,5 1723,8 1000 0,443 – 0,868 179 152
3×95+50 39,3 2236,7 1000 0,320 – 0,641 215 186
3×120+70 43,5 2785,8 500 0,253 – 0,443 245 216
3×150+70 48,2 3266,0 500 0,206 – 0,443 275 246
3×185+95 54,0 4193,1 500 0,164 – 0,320 313 285
3×240+120 59,9 5274,1 250 0,125 – 0,253 364 338
3×300+150 67,3 6796,6 250 0,100 – 0,206 419 400
3×400+185 75,2 9224,8 250 0,0778 – 0,164 484 472
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 18,4 482,4 1000 3,08 – –
4×16 20,8 644,9 1000 1,91 – –
4×25 24,6 912,5 1000 1,20 102 82
4×35 27,3 1123,4 1000 0,868 123 100
4×50 31,5 1421,5 1000 0,641 144 119
4×70 36,8 1887,7 1000 0,443 179 152
4×95 41,7 2439,7 1000 0,320 215 186
4×120 45,7 3025,0 500 0,253 245 216
4×150 51,8 3840,5 500 0,206 275 246
4×185 57,9 4734,0 500 0,164 313 285
4×240 64,5 5832,0 250 0,125 364 338
4×300 72,2 7732,0 250 0,100 419 400
4×400 80,9 9807,9 250 0,0778 484 472
4×500 89,9 11841,3 250 0,0605 553 539
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 20,0 663,4 1000 3,08 – –
5×16 22,7 852,6 1000 1,91 – –
5×25 26,9 1191,7 1000 1,20 102 82
5×35 30,1 1484,2 1000 0,868 123 100
5×50 34,7 1884,2 1000 0,641 144 119
5×70 40,6 2519,5 500 0,443 179 152
5×95 46,1 3248,9 500 0,320 215 186
5×120 50,5 3896,8 500 0,253 245 216
5×150 57,4 4899,6 500 0,206 275 246
5×185 64,0 6105,0 250 0,164 313 285
5×240 71,5 7686,7 250 0,125 364 338
5×300 80,0 9845,3 250 0,100 419 400
5×400 89,7 12528,0 250 0,0778 484 472
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 22,1 754,7 1000 1,91 – 3,08 – –
4×25+16 26,1 1053,8 1000 1,20 – 1,91 102 82
4×35+16 28,6 1295,2 1000 0,868 – 1,91 123 100
4×50+25 33,2 1665,9 1000 0,641 – 1,20 144 119
4×70+35 38,6 2264,8 500 0,443 – 0,868 179 152
4×95+50 43,9 2946,1 500 0,320 – 0,641 215 186
4×120+70 48,6 3630,6 500 0,253 – 0,443 245 216
4×150+70 54,1 4415,4 500 0,206 – 0,443 275 246
4×185+95 60,6 5549,0 250 0,164 – 0,320 313 285
4×240+120 67,3 6904,1 250 0,125 – 0,253 364 338
4×300+150 75,6 8894,7 250 0,100 – 0,206 419 400
4×400+185 84,6 11235,3 250 0,0778 – 0,164 484 472
4×240+185 70,0 7390,0 250 0,125 – 0,164 364 338
4×35+1,5 27,3 1140,0 1000 0,868 – 12,1 123 100
4×35+2,5 27,3 1150,4 1000 0,868 – 7,41 123 100
4×25+2,5 24,6 944,5 1000 1,20 – 7,41 102 82
4×150+1,5 51,8 3863,8 500 0,206 – 12,1 275 246
Note 1:
* Conductor resistance calculated theoretically.
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
