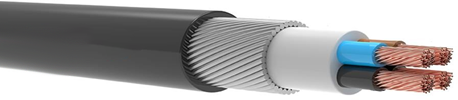

RVMV-K                   CU/XLPE/SWA/PVC
RVM(a)V-K              CU/XLPE/AWA/PVC



 Voltage Rating
0.6/1 kV



 Standards
IEC 60502-1 , VDE 0276
IEC 60228


 Reaction to Fire Classification ( CPR )
EN 60332-1-2



Conductor Flame Retardant



 Conductor
Flexible Copper Conductor (Class 5)



 Insulation
XLPE (Cross-linked Polyethylene)



 Filler
PVC Filler



 Armour
Galvanized Round Steel Wire (Aluminium round wire for one core cables)



 Sheath
PVC (Polyvinyl Chloride)



 Technical Data
Max. Operating Temperature : 90°C
Short Circuit Temperature : 250°C (max.5 sec)
Bending Radius : 6D ( D : Overall Diameter )
Test Voltage : 3,5 kV



 Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distributions,
industrial plants where there is a risk of mechanical damage. Suitable for comparatively high maximum permissible
conductor temperature.



Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×4* 11,0 214,3 1000 4,95 55 47
1×6* 11,6 246,0 1000 3,30 68 59
1×10* 12,5 300,5 1000 1,91 91 81
1×16* 13,5 374,6 1000 1,21 117 109
1×25* 15,2 508,1 1000 0,780 150 146
1×35* 17,2 675,2 1000 0,554 179 179
1×50* 18,8 847,2 1000 0,386 211 218
1×70* 20,6 1081,0 1000 0,272 257 275
1×95* 23,0 1377,4 1000 0,206 304 336
1×120* 24,7 1648,5 1000 0,161 341 388
1×150* 26,7 1973,1 1000 0,129 377 438
1×185* 29,2 2437,5 1000 0,106 418 501
1×240* 31,7 2984,5 500 0,0801 469 508
1×300* 35,6 3742,2 500 0,0641 514 654
1×400* 39,7 4911,5 500 0,0486 565 733
1×500* 45,2 6281,5 500 0,0384 623 825
1×630* 50,1 7930,9 500 0,0287 690 934



Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×1,5 13,9 326,1 1000 13,3 31 25
2×2,5 13,9 376,9 1000 7,98 40 33
2×4 14,9 448,4 1000 4,95 52 43
2×6 16,9 624,8 1000 3,30 65 54
2×10 18,7 794,4 1000 1,91 87 75
2×16 20,6 1004,2 1000 1,21 113 100
2×25 24,8 1529,5 1000 0,780 146 136
2×35 27,0 1855,4 1000 0,554 176 165
2×50 30,5 2401,1 1000 0,386 208 201
2×70 35,2 3262,0 500 0,272 256 255
2×95 39,3 4108,5 500 0,206 307 314
2×120 42,9 4924,3 500 0,161 349 364
2×150 48,7 6359,6 500 0,129 391 416
2×185 53,6 7688,9 250 0,106 442 480
2×240 59,0 9315,6 250 0,0801 509 565
3×1,5 13,5 375,2 1000 13,3 31 25
3×2,5 14,4 437,3 1000 7,98 40 33
3×4 15,5 501,0 1000 4,95 52 43
3×6 17,6 688,3 1000 3,30 65 54
3×10 19,6 912,3 1000 1,91 87 75
3×16 22,3 1283,0 1000 1,21 113 100
3×25 26,1 1802,1 1000 0,780 146 136
3×35 28,6 2272,8 1000 0,554 176 165
3×50 32,4 2917,2 1000 0,386 208 201
3×70 37,8 4067,5 1000 0,272 256 255
3×95 41,7 5058,5 500 0,206 307 314
3×120 46,7 6377,1 500 0,161 349 364
3×150 51,8 7831,3 500 0,129 391 416
3×185 57,1 9515,7 250 0,106 442 480
3×240 62,8 11420,8 250 0,0801 509 565
3×300 68,5 13598,3 250 0,0641 569 643
3×400 79,2 18859,5 250 0,0486 637 737



Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10+6 17,2 759,8 1000 1,91 – 3,30 87 75
3×10+6 20,4 1013,4 1000 1,91 – 3,30 87 75
3×16+10 23,4 1439,3 1000 1,21 – 1,91 113 100
3×25+16 27,2 1974,8 1000 0,780 – 1,21 146 136
3×35+16 29,3 2424,8 1000 0,554 – 1,21 176 165
3×50+25 34,4 3460,7 1000 0,386 – 0,780 208 201
3×70+35 39,1 4481,2 500 0,272 – 0,554 256 255
3×95+50 43,4 5628,8 500 0,206 – 0,386 307 314
3×120+70 49,4 7300,3 500 0,161 – 0,272 349 364
3×150+70 53,3 8537,0 250 0,129 – 0,272 391 416
3×185+95 59,2 10538,2 250 0,106 – 0,206 442 480
3×240+120 64,8 12612,1 250 0,0801 – 0,161 509 565
3×300+150 72,3 16217,8 250 0,0641 – 0,129 569 643
3×400+185 81,7 20665,9 250 0,0486 – 0,106 637 737
3×50+16 33,3 3268,9 1000 0,386 – 1,21 208 201
4×16+10 25,2 1737,0 1000 1,21 – 1,91 113 100
4×35+16 32,3 3084,3 1000 0,554 – 1,21 176 165
4×50+16 37,3 4227,1 1000 0,386 – 1,21 208 201



Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C



4×1,5 14,2 401,6 1000 13,3 31 25
4×2,5 15,3 475,1 1000 7,98 40 33
4×4 17,4 666,1 1000 4,95 52 43
4×6 18,8 819,6 1000 3,30 65 54
4×10 20,9 1067,9 1000 1,91 87 75
4×16 24,0 1512,2 1000 1,21 113 100
4×25 28,3 2165,9 1000 0,780 146 136
4×35 31,1 2752,7 1000 0,554 176 165
4×50 36,6 3862,1 1000 0,386 208 201
4×70 41,3 5066,5 500 0,272 256 255
4×95 46,8 6674,6 500 0,206 307 314
4×120 51,6 8125,5 500 0,161 349 364
4×150 56,7 9805,0 250 0,129 391 416
4×185 63,1 11903,6 250 0,106 442 480
4×240 69,1 14311,7 250 0,0801 509 565
4×300 77,3 18419,8 250 0,0641 569 643
4×400 87,2 23667,8 250 0,0486 637 737



Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×1,5 15,3 481,6 1000 13,3 31 25
5×2,5 17,1 676,1 1000 7,98 40 33
5×4 18,5 833,7 1000 4,95 52 43
5×6 20,0 987,7 1000 3,30 65 54
5×10 23,1 1435,9 1000 1,91 87 75
5×16 25,7 1915,6 1000 1,21 113 100
5×25 30,7 2766,4 1000 0,780 146 136
5×35 34,7 3742,3 1000 0,554 176 165
5×50 39,8 4947,8 500 0,386 208 201
5×70 46,1 6826,4 500 0,272 256 255
5×95 51,5 8557,9 500 0,206 307 314
5×120 56,3 10381,0 250 0,161 349 364
5×150 62,5 12506,8 250 0,129 391 416
5×185 69,2 15250,5 250 0,106 442 480
5×240 77,7 19709,3 250 0,0801 509 565
5×300 84,8 23599,6 250 0,0641 569 643
5×400 95,9 30622,4 250 0,0486 637 737



Note 1:
* For RVM(a)V-K cables



Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
