NA2XRH FE

NA2XRH FE

NA2XRH FE

Category:

tds
Code
YAXZ2Z1 FE 180 , NA2XRH FE 180                      AL/MICA/XLPE/SWA/HFFR
YAXZ2(a)Z1 FE 180 , NA2XR(a)H FE 180           AL/MICA/XLPE/AWA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
IEC 60331-21 Circuit Integrity
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant

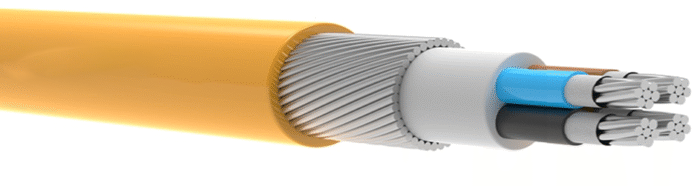

Conductor
Stranded Aluminum Conductor (Class 2)
Separator
Mica Tape
Insulation
XLPE ( Cross-linked Polyethylene )
Filler
Halogen Free Filler
Armour
Round Steel Wire (Aluminium Wire for One Core Cables)
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage. Suitable for comparatively high maximum pemissible
conductor temperature.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10* 12,6 221,0 1000 3,08 – –
1×16* 13,6 261,2 1000 1,91 – –
1×25* 15,1 323,6 1000 1,20 116 112
1×35* 17,1 409,9 1000 0,868 138 137
1×50* 18,5 483,9 1000 0,641 164 169
1×70* 20,5 602,6 1000 0,443 201 214
1×95* 22,8 751,9 1000 0,320 240 263
1×120* 24,3 861,1 1000 0,253 272 308
1×150* 26,7 1033,9 1000 0,206 303 349
1×185* 29,0 1233,7 1000 0,164 340 401
1×240* 31,6 1481,4 500 0,125 387 469
1×300* 35,6 1886,7 500 0,100 430 535
1×400* 39,2 2330,0 500 0,0778 479 615
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 18,9 678,8 1000 3,08 – –
2×16 20,8 824,3 1000 1,91 – –
2×25 24,7 1203,6 1000 1,20 113 104
2×35 26,8 1419,7 1000 0,868 136 128
2×50 29,8 1705,5 1000 0,641 159 152
2×70 35,1 2356,3 500 0,443 197 194
2×95 38,7 2848,6 500 0,320 236 239
2×120 42,0 3371,6 500 0,253 269 278
2×150 48,7 4447,3 500 0,206 302 316
2×185 53,3 5350,8 250 0,164 342 365
2×240 58,4 6306,3 250 0,125 397 430
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 19,7 744,2 1000 3,08 – –
3×16 22,6 985,2 1000 1,91 – –
3×25 25,9 1325,8 1000 1,20 113 104
3×35 28,3 1583,8 1000 0,868 136 128
3×50 31,5 1902,3 1000 0,641 159 152
3×70 37,6 2674,2 1000 0,443 197 194
3×95 41,1 3196,3 500 0,320 236 239
3×120 45,8 4139,2 500 0,253 269 278
3×150 51,7 5064,1 500 0,206 302 316
3×185 56,7 5993,2 250 0,164 342 365
3×240 62,6 7105,7 250 0,125 397 430
3×300 68,6 8265,4 250 0,100 454 506
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 23,6 1117,4 1000 1,91 – 3,08 – –
3×25+16 27,1 1411,8 1000 1,20 – 1,91 113 104
3×35+16 29,1 1650,7 1000 0,868 – 1,91 136 128
3×50+25 33,7 2189,0 1000 0,641 – 1,20 159 152
3×70+35 38,8 2858,8 500 0,443 – 0,868 197 194
3×95+50 42,7 3481,8 500 0,320 – 0,641 236 239
3×120+70 48,6 4591,4 500 0,253 – 0,443 269 278
3×150+70 53,2 5389,6 250 0,206 – 0,443 302 316
3×185+95 58,3 6422,8 250 0,164 – 0,320 342 365
3×240+120 64,4 7446,6 250 0,125 – 0,253 397 430
3×300+150 72,4 9976,1 250 0,100 – 0,206 454 506
3×400+185 80,7 11937,5 250 0,0778 – 0,164 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 21,1 843,1 1000 3,08 – –
4×16 24,2 1157,1 1000 1,91 – –
4×25 28,1 1527,5 1000 1,20 113 104
4×35 30,8 1815,0 1000 0,868 136 128
4×50 35,7 2485,7 1000 0,641 159 152
4×70 41,1 3159,0 500 0,443 197 194
4×95 46,1 4112,7 500 0,320 236 239
4×120 50,5 4969,8 500 0,253 269 278
4×150 56,7 6012,4 250 0,206 302 316
4×185 62,7 7108,7 250 0,164 342 365
4×240 68,9 8309,6 250 0,125 397 430
4×300 77,4 11078,1 250 0,100 454 506
4×400 86,1 13293,0 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 23,4 1080,8 1000 3,08 – –
5×16 26,0 1335,6 1000 1,91 – –
5×25 30,5 1807,1 1000 1,20 113 104
5×35 34,3 2377,6 1000 0,868 136 128
5×50 38,8 2914,8 500 0,641 159 152
5×70 45,9 4116,4 500 0,443 197 194
5×95 50,7 5101,0 500 0,320 236 239
5×120 55,2 5948,2 250 0,253 269 278
5×150 62,5 7241,0 250 0,206 302 316
5×185 68,7 8445,6 250 0,164 342 365
5×240 77,4 11296,0 250 0,125 397 430
5×300 84,9 13144,9 250 0,100 454 506
5×400 94,6 15946,1 250 0,0778 520 575
Note 1:
* For YAXZ2(a)Z1 , NA2XR(a)H cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
