NA2XRH

NA2XRH

NA2XRH

Category:

tds
Code

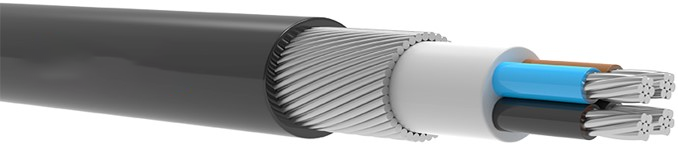

YAXZ2Z1 , NA2XRH                      AL/XLPE/SWA/HFFR
YAXZ2(a)Z1 , NA2XR(a)H           AL/XLPE/AWA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE ( Cross-linked Polyethylene )
Filler
Halogen Free Filler
Armour
Round Steel Wire (Aluminium Wire for One Core Cables)
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage. Suitable for comparatively high maximum pemissible conductor
temperature.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10* 12,3 212,0 1000 3,08 – –
1×16* 13,3 249,2 1000 1,91 – –
1×25* 14,9 311,7 1000 1,20 116 112
1×35* 16,8 398,3 1000 0,868 138 137
1×50* 18,2 467,7 1000 0,641 164 169
1×70* 20,3 575,0 1000 0,443 201 214
1×95* 22,5 726,6 1000 0,320 240 263
1×120* 24,0 833,4 1000 0,253 272 308
1×150* 26,4 985,9 1000 0,206 303 349
1×185* 28,7 1180,1 1000 0,164 340 401
1×240* 31,3 1412,1 500 0,125 387 469
1×300* 35,3 1817,8 500 0,100 430 535
1×400* 38,9 2243,4 500 0,0778 479 615
1×500* 42,6 2677,1 250 0,0605 531 700
1×630* 48,6 3449,2 250 0,0469 587 790
1×800* 53,0 4173,5 250 0,0367 – –
1×1000* 57,9 4978,8 250 0,0291 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 18,3 631,7 1000 3,08 – –
2×16 20,3 772,4 1000 1,91 – –
2×25 24,1 1134,1 1000 1,20 113 104
2×35 26,2 1349,2 1000 0,868 136 128
2×50 29,2 1618,5 1000 0,641 159 152
2×70 34,5 2237,1 500 0,443 197 194
2×95 38,1 2722,6 500 0,320 236 239
2×120 41,4 3238,9 500 0,253 269 278
2×150 48,1 4248,4 500 0,206 302 316
2×185 52,7 5132,1 250 0,164 342 365
2×240 57,8 6027,9 250 0,125 397 430
2×300 63,7 7072,4 250 0,100 454 506
2×400 70,9 8487,5 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 19,1 689,9 1000 3,08 – –
3×16 21,9 922,2 1000 1,91 – –
3×25 25,3 1243,6 1000 1,20 113 104
3×35 27,7 1489,6 1000 0,868 136 128
3×50 30,9 1783,9 1000 0,641 159 152
3×70 37 2503,0 1000 0,443 197 194
3×95 40,5 3048,6 500 0,320 236 239
3×120 45,1 3980,5 500 0,253 269 278
3×150 51,1 4833,0 500 0,206 302 316
3×185 56,1 5715,0 250 0,164 342 365
3×240 62,0 6767,0 250 0,125 397 430
3×300 68,0 7937,6 250 0,100 454 506
3×400 77,6 10909,6 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 22,9 1043,7 1000 1,91 – 3,08 – –
3×25+16 26,4 1322,9 1000 1,20 – 1,91 113 104
3×35+16 28,4 1560,7 1000 0,868 – 1,91 136 128
3×50+25 33,0 2117,2 1000 0,641 – 1,20 159 152
3×70+35 38,1 2696,6 500 0,443 – 0,868 197 194
3×95+50 42,0 3303,2 500 0,320 – 0,641 236 239
3×120+70 47,8 4387,6 500 0,253 – 0,443 269 278
3×150+70 52,4 5108,6 250 0,206 – 0,443 302 316
3×185+95 57,6 6056,7 250 0,164 – 0,320 342 365
3×240+120 63,7 7067,8 250 0,125 – 0,253 397 430
3×300+150 71,6 9575,5 250 0,100 – 0,206 454 506
3×400+185 80,0 11444,7 250 0,0778 – 0,164 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 20,5 780,2 1000 3,08 – –
4×16 23,5 1080,5 1000 1,91 – –
4×25 27,4 1411,4 1000 1,20 113 104
4×35 30,1 1711,7 1000 0,868 136 128
4×50 35,0 2354,2 1000 0,641 159 152
4×70 40,4 2970,8 500 0,443 197 194
4×95 45,4 3919,4 500 0,320 236 239
4×120 49,8 4773,5 500 0,253 269 278
4×150 56,0 5706,3 250 0,206 302 316
4×185 62,0 6762,2 250 0,164 342 365
4×240 68,1 7864,9 250 0,125 397 430
4×300 76,2 10530,0 250 0,100 454 506
4×400 85,4 12703,1 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 22,6 992,6 1000 3,08 – –
5×16 25,2 1230,5 1000 1,91 – –
5×25 29,7 1640,1 1000 1,20 113 104
5×35 33,5 2171,7 1000 0,868 136 128
5×50 38,0 2731,8 500 0,641 159 152
5×70 45,1 3859,5 500 0,443 197 194
5×95 49,9 4761,8 500 0,320 236 239
5×120 54,3 5666,5 250 0,253 269 278
5×150 61,7 6837,1 250 0,206 302 316
5×185 67,9 7972,0 250 0,164 342 365
5×240 76,2 10578,5 250 0,125 397 430
5×300 84,1 1261,4 250 0,100 454 506
5×400 93,8 15224,3 250 0,0778 520 575
Note 1:
* For YAXZ2(a)Z1 , NA2XR(a)H cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
