NA2XH FE

NA2XH FE

NA2XH FE

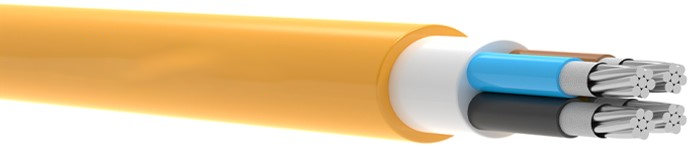

Category:

tds
Code
NA2XH FE 180 , YAXZ1 FE 180          AL/MICA/XLPE/HFFR
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
IEC 60331-21 Circuit Integrity
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Separator
Mica Tape
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
–
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
Used in energy networks in refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plants,
data processing centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 8,2 97,1 1000 3,08 – –
1×16 9,2 124,3 1000 1,91 – –
1×25 10,7 168,7 1000 1,20 114 106
1×35 11,8 208,7 1000 0,868 136 130
1×50 13,1 258,1 1000 0,641 162 161
1×70 15,3 346,8 1000 0,443 199 204
1×95 16,9 443,5 1000 0,320 238 252
1×120 18,6 529,9 1000 0,253 272 295
1×150 21,2 673,1 1000 0,206 305 339
1×185 23,5 832,3 1000 0,164 347 395
1×240 26,0 1037,8 1000 0,125 404 472
1×300 28,8 1284,8 1000 0,100 457 547
1×400 32,4 1662,0 1000 0,0778 525 643
1×500 36,1 2043,5 500 0,0605 601 754
1×630 40,6 2564,7 500 0,0469 687 882
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 15,4 355,7 1000 3,08 – –
2×16 17,3 455,6 1000 1,91 – –
2×25 20,5 629,6 1000 1,20 112 102
2×35 22,7 786,8 1000 0,868 135 126
2×50 25,5 998,6 1000 0,641 158 149
2×70 30,4 1379,0 1000 0,443 196 191
2×95 33,6 1715,3 1000 0,320 234 234
2×120 37,3 2128,9 1000 0,253 268 273
2×150 42,4 2699,9 1000 0,206 300 311
2×185 47,5 3359,4 1000 0,164 342 360
2×240 52,6 4149,6 500 0,125 398 427
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 16,2 398,4 1000 3,08 – –
3×16 18,4 515,1 1000 1,91 – –
3×25 21,7 714,7 1000 1,20 112 102
3×35 24,2 899,3 1000 0,868 135 126
3×50 27,3 1141,4 1000 0,641 158 149
3×70 32,5 1596,7 1000 0,443 196 191
3×95 36,0 1998,1 1000 0,320 234 234
3×120 40,0 2455,8 1000 0,253 268 273
3×150 45,5 3134,7 500 0,206 300 311
3×185 50,9 3925,8 500 0,164 342 360
3×240 56,4 4857,5 500 0,125 398 427
3×300 62,8 6122,9 250 0,100 457 507
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 19,4 579,1 1000 1,91 – 3,08 – –
3×25+16 22,9 796,4 1000 1,20 – 1,91 112 102
3×35+16 24,9 963,2 1000 0,868 – 1,91 135 126
3×50+25 28,6 1250,2 1000 0,641 – 1,20 158 149
3×70+35 33,7 1724,4 1000 0,443 – 0,868 196 191
3×95+50 37,5 2192,4 1000 0,320 – 0,641 234 234
3×120+70 42,3 2762,9 500 0,253 – 0,443 268 273
3×150+70 47,0 3367,3 500 0,206 – 0,443 300 311
3×185+95 52,6 4229,1 500 0,164 – 0,320 342 360
3×240+120 58,2 5187,9 500 0,125 – 0,253 398 427
3×300+150 65,2 6547,1 250 0,100 – 0,206 457 507
3×400+185 73,1 8324,4 250 0,0778 – 0,164 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 17,6 472,9 1000 3,08 – –
4×16 20,0 616,6 1000 1,91 – –
4×25 23,8 861,6 1000 1,20 112 102
4×35 26,5 1089,2 1000 0,868 135 126
4×50 30,1 1401,1 1000 0,641 158 149
4×70 36,0 1960,6 1000 0,443 196 191
4×95 39,9 2461,8 1000 0,320 234 234
4×120 44,3 3046,3 500 0,253 268 273
4×150 50,5 3885,7 500 0,206 300 311
4×185 56,5 4859,5 500 0,164 342 360
4×240 62,7 6019,2 250 0,125 398 427
4×300 69,8 7494,1 250 0,100 457 507
4×400 78,5 9630,6 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 19,2 633,4 1000 3,08 – –
5×16 21,8 822,1 1000 1,91 – –
5×25 26,0 1144,6 1000 1,20 112 102
5×35 29,2 1437,0 1000 0,868 135 126
5×50 33,2 1820,0 1000 0,641 158 149
5×70 39,7 2512,7 500 0,443 196 191
5×95 44,1 3153,4 500 0,320 234 234
5×120 49,0 3832,6 500 0,253 268 273
5×150 55,9 4927,2 500 0,206 300 311
5×185 62,5 6155,5 250 0,164 342 360
5×240 69,4 7630,5 250 0,125 398 427
5×300 77,3 9534,3 250 0,100 457 507
5×400 87,0 12254,3 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 21,3 666,4 1000 1,91 – 3,08 – –
4×25+16 25,2 930,8 1000 1,20 – 1,91 112 102
4×35+16 27,7 1133,7 1000 0,868 – 1,91 135 126
4×50+25 31,8 1486,7 1000 0,641 – 1,20 158 149
4×70+35 37,7 2052,7 500 0,443 – 0,868 196 191
4×95+50 42,0 2603,2 500 0,320 – 0,641 234 234
4×120+70 47,2 3308,1 500 0,253 – 0,268 268 273
4×150+70 52,7 4077,9 500 0,206 – 0,268 300 311
4×185+95 59,0 5138,7 250 0,164 – 0,320 342 360
4×240+120 65,4 6380,5 250 0,125 – 0,253 398 427
4×300+150 73,2 8019,0 250 0,100 – 0,206 457 507
4×400+185 82,2 10292,5 250 0,0778 – 0,164 529 600
Note :
Current carrying capacities are valid at 30°C ambient temperature
