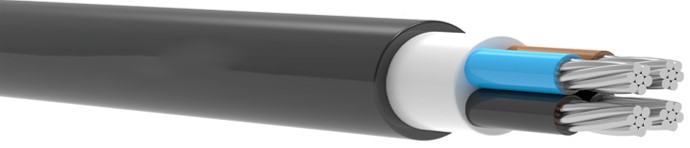

NA2XH

NA2XH

NA2XH

Category:

tds
Code
NA2XH , YAXZ1         AL/XLPE/HFFR
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
–
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
Used in energy networks in refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plants,
 data processing, centers, business centers where there is a risk of fire.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 7,9 86,8 1000 3,08 – –
1×16 8,9 112,9 1000 1,91 – –
1×25 10,5 153,8 1000 1,20 114 106
1×35 11,5 193,7 1000 0,868 136 130
1×50 12,8 237,8 1000 0,641 162 161
1×70 15,0 314,0 1000 0,443 199 204
1×95 16,6 412,0 1000 0,320 238 252
1×120 18,3 495,8 1000 0,253 272 295
1×150 20,9 617,3 1000 0,206 305 339
1×185 23,2 768,9 1000 0,164 347 395
1×240 25,7 956,4 1000 0,125 404 472
1×300 28,5 1203,1 1000 0,100 457 547
1×400 32,1 1558,1 1000 0,0778 525 643
1×500 35,8 1919,9 500 0,0605 601 754
1×630 40,3 2415,4 500 0,0469 687 882
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 14,8 311,5 1000 3,08 – –
2×16 16,8 408,2 1000 1,91 – –
2×25 19,9 577,3 1000 1,20 112 102
2×35 22,2 723,5 1000 0,868 135 126
2×50 25,0 920,0 1000 0,641 158 149
2×70 29,8 1269,3 1000 0,443 196 191
2×95 33,0 1604,6 1000 0,320 234 234
2×120 36,7 1984,1 1000 0,253 268 273
2×150 41,8 2515,0 1000 0,206 300 311
2×185 46,9 3151,4 1000 0,164 342 360
2×240 52,0 3903,3 500 0,125 398 427
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 15,6 349,3 1000 3,08 – –
3×16 17,7 466,8 1000 1,91 – –
3×25 21,1 668,4 1000 1,20 112 102
3×35 23,6 809,1 1000 0,868 135 126
3×50 26,6 1002,6 1000 0,641 158 149
3×70 31,9 1414,5 1000 0,443 196 191
3×95 35,3 1805,1 1000 0,320 234 234
3×120 39,3 2233,7 1000 0,253 268 273
3×150 44,9 2798,7 500 0,206 300 311
3×185 50,3 3452,8 500 0,164 342 360
3×240 55,8 4144,9 500 0,125 398 427
3×300 61,8 5282,4 250 0,100 457 507
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 18,7 516,2 1000 1,91 – 3,08 – –
3×25+16 22,2 693,2 1000 1,20 – 1,91 112 102
3×35+16 24,3 862,0 1000 0,868 – 1,91 135 126
3×50+25 27,8 1090,2 1000 0,641 – 1,20 158 149
3×70+35 33 1493,2 1000 0,443 – 0,868 196 191
3×95+50 36,8 1928,8 1000 0,320 – 0,641 234 234
3×120+70 41,6 2397,1 500 0,253 – 0,443 268 273
3×150+70 46,2 2949,4 500 0,206 – 0,443 300 311
3×185+95 51,8 3778,5 500 0,164 – 0,320 342 360
3×240+120 57,5 4622,2 500 0,125 – 0,253 398 427
3×300+150 64,5 5730,9 250 0,100 – 0,206 457 507
3×400+185 72,4 7571,7 250 0,0778 – 0,164 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 17,0 401,8 1000 3,08 – –
4×16 19,3 533,0 1000 1,91 – –
4×25 23,1 774,7 1000 1,20 112 102
4×35 25,8 966,8 1000 0,868 135 126
4×50 29,4 1206,5 1000 0,641 158 149
4×70 35,2 1690,4 1000 0,443 196 191
4×95 39,1 2169,9 1000 0,320 234 234
4×120 43,6 2695,6 500 0,253 268 273
4×150 49,8 3379,2 500 0,206 300 311
4×185 55,8 4256,7 500 0,164 342 360
4×240 61,9 5108,1 250 0,125 398 427
4×300 69,1 6556,3 250 0,100 457 507
4×400 77,8 8599,3 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 18,4 580,1 1000 3,08 – –
5×16 21,0 744,3 1000 1,91 – –
5×25 25,2 1019,4 1000 1,20 112 102
5×35 28,4 1307,5 1000 0,868 135 126
5×50 32,4 1589,5 1000 0,641 158 149
5×70 38,9 2107,2 500 0,443 196 191
5×95 43,2 2748,7 500 0,320 234 234
5×120 48,1 3383,1 500 0,253 268 273
5×150 55,0 4309,4 500 0,206 300 311
5×185 61,7 5298,2 250 0,164 342 360
5×240 68,6 6494,9 250 0,125 398 427
5×300 76,5 8206,9 250 0,100 457 507
5×400 86,2 10728,5 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 20,5 667,6 1000 1,91 – 3,08 – –
4×25+16 24,4 925,4 1000 1,20 – 1,91 112 102
4×35+16 26,9 1133,8 1000 0,868 – 1,91 135 126
4×50+25 31,0 1455,6 1000 0,641 – 1,20 158 149
4×70+35 36,9 1980,2 500 0,443 – 0,868 196 191
4×95+50 41,2 2560,4 500 0,320 – 0,641 234 234
4×120+70 46,4 3254,5 500 0,253 – 0,268 268 273
4×150+70 51,9 3923,5 500 0,206 – 0,268 300 311
4×185+95 58,2 4964,7 250 0,164 – 0,320 342 360
4×240+120 64,6 6142,5 250 0,125 – 0,253 398 427
4×300+150 72,4 7812,0 250 0,100 – 0,206 457 507
4×400+185 81,4 10008,5 250 0,0778 – 0,164 529 600
Note :
Current carrying capacities are valid at 30°C ambient temperature.
