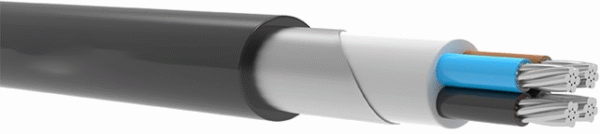

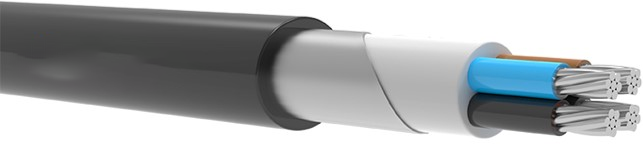

NA2XBH

NA2XBH

NA2XBH

Category:

tds
Code
NA2XBH , YAXZ4Z1                           AL/XLPE/STA/HFFR
NA2XB(a)H , YAXZ4(a)Z1                AL/XLPE/ATA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
EN 61034 Smoke Density
EN 50267 Halogen Free
EN 60332-3 Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
Double Steel Tape (Double Aluminium Tape for one core cables)
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distribution
industrial plants, where there is no risk of mechanical damage.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×50* 16,7 396,7 1000 0,641 164 169
1×70* 18,8 500,1 1000 0,443 201 214
1×95* 20,3 609,6 1000 0,320 240 263
1×120* 21,8 713,2 1000 0,253 272 308
1×150* 24,2 854,3 1000 0,206 303 349
1×185* 26,4 1019,9 1000 0,164 340 401
1×240* 28,9 1235,6 500 0,125 387 469
1×300* 32,1 1547,1 500 0,100 430 535
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 16,2 433,2 1000 3,08 – –
2×16 18,2 543,8 1000 1,91 – –
2×25 21,3 731,5 1000 1,20 113 104
2×35 23,4 889,2 1000 0,868 136 128
2×50 26,2 1092,3 1000 0,641 159 152
2×70 30,6 1453,3 500 0,443 197 194
2×95 34,3 1867,3 500 0,320 236 239
2×120 38,2 2501,0 500 0,253 269 278
2×150 43,8 3165,8 500 0,206 302 316
2×185 48,4 3816,4 250 0,164 342 365
2×240 53,5 4634,6 250 0,125 397 430
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 17,0 477,9 1000 3,08 – –
3×16 19,2 605,9 1000 1,91 – –
3×25 22,5 818,5 1000 1,20 113 104
3×35 24,8 1004,7 1000 0,868 136 128
3×50 27,9 1234,8 1000 0,641 159 152
3×70 33,1 1700,7 500 0,443 197 194
3×95 37,3 2407,9 500 0,320 236 239
3×120 40,8 2862,4 500 0,253 269 278
3×150 46,8 3605,2 250 0,206 302 316
3×185 51,8 4356,9 250 0,164 342 365
3×240 57,7 5372,7 250 0,125 397 430
3×300 63,7 6576,7 250 0,100 454 506
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 20,1 668,3 1000 1,91 – 3,08 – –
3×25+16 23,6 897,8 1000 1,20 – 1,91 113 104
3×35+16 25,4 1063,3 1000 0,868 – 1,91 136 128
3×50+25 29,1 1354,5 1000 0,641 – 1,20 159 152
3×70+35 34,3 1840,2 500 0,443 – 0,868 197 194
3×95+50 38,8 2583,8 500 0,320 – 0,641 236 239
3×120+70 43,5 3220,9 500 0,253 – 0,443 269 278
3×150+70 48,2 3800,5 500 0,206 – 0,443 302 316
3×185+95 53,8 4716,1 250 0,164 – 0,320 342 365
3×240+120 59,4 5725,1 250 0,125 – 0,253 397 430
3×300+150 66,0 7050,0 250 0,100 – 0,206 454 506
3×400+185 74,3 8980,4 250 0,0778 – 0,164 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 18,4 545,1 1000 3,08 – –
4×16 20,7 700,8 1000 1,91 – –
4×25 24,5 958,1 1000 1,20 113 104
4×35 27,1 1187,7 1000 0,868 136 128
4×50 30,7 1483,6 1000 0,641 159 152
4×70 37,2 2308,4 500 0,443 197 194
4×95 41,1 2869,2 500 0,320 236 239
4×120 45,5 3481,0 500 0,253 269 278
4×150 51,7 4315,6 250 0,206 302 316
4×185 57,7 5337,0 250 0,164 342 365
4×240 63,8 6506,2 250 0,125 397 430
4×300 70,6 7993,6 250 0,100 454 506
4×400 80,4 10833,7 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 19,8 631,6 1000 3,08 – –
5×16 22,4 819,2 1000 1,91 – –
5×25 26,7 1129,2 1000 1,20 113 104
5×35 29,7 1424,6 1000 0,868 136 128
5×50 34,1 1841,9 500 0,641 159 152
5×70 40,8 2750,1 500 0,443 197 194
5×95 45,6 3489,2 500 0,320 236 239
5×120 50,1 4196,8 250 0,253 269 278
5×150 57,4 5279,3 250 0,206 302 316
5×185 63,6 6446,6 250 0,164 342 365
5×240 70,5 7873,1 250 0,125 397 430
5×300 79,1 10361,3 250 0,100 454 506
5×400 88,8 13087,1 250 0,0778 520 575
Note 1:
* For YAXZ4(a)Z1 , NA2XB(a)H cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
