NA2XB2Y

NA2XB2Y

NA2XB2Y

Category:

tds
Code

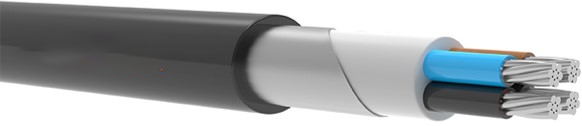

NA2XB2Y              AL/XLPE/PVC/STA/HDPE
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1 , VDE 0276
IEC 60228 Conductor
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
PVC Filler
Armour
Double Galvanized Steel Tape
Sheath
HDPE (High Density Polyethylene)
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 15D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations, local energy distributions,
industrial plants, where there is no risk of mechanical damage. Suitable for comparatively high maximum permissible conductor
temperature.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 16,2 438,7 1000 3,08 – –
2×16 18,2 554,7 1000 1,91 – –
2×25 21,3 744,3 1000 1,20 113 104
2×35 23,4 910,3 1000 0,868 136 128
2×50 26,2 1119,8 1000 0,641 159 152
2×70 30,6 1525,3 500 0,443 197 194
2×95 34,9 2349,8 500 0,320 236 239
2×120 38,2 2768,9 500 0,253 269 278
2×150 43,8 3455,8 500 0,206 302 316
2×185 48,4 4146,4 250 0,164 342 365
2×240 53,5 5047,7 250 0,125 397 430
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 17,0 481,7 1000 3,08 – –
3×16 19,1 611,0 1000 1,91 – –
3×25 22,5 827,0 1000 1,20 113 104
3×35 24,8 1024,6 1000 0,868 136 128
3×50 27,9 1258,3 1000 0,641 159 152
3×70 33,1 1720,2 1000 0,443 197 194
3×95 37,3 2652,4 500 0,320 236 239
3×120 40,8 3185,3 500 0,253 269 278
3×150 46,8 3910,2 500 0,206 302 316
3×185 51,8 4675,8 250 0,164 342 365
3×240 57,7 5726,6 250 0,125 397 430
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 20,1 674,4 1000 1,91 – 3,08 – –
3×25+16 23,6 913,0 1000 1,20 – 1,91 113 104
3×35+16 25,4 1083,6 1000 0,868 – 1,91 136 128
3×50+25 29,1 1367,5 1000 0,641 – 1,20 159 152
3×70+35 34,3 1857,8 500 0,443 – 0,868 197 194
3×70+50 35,2 1945,0 500 0,443 – 0,641 197 194
3×95+50 38,7 2826,5 500 0,320 – 0,641 236 239
3×120+70 43,5 3506,6 500 0,253 – 0,443 269 278
3×150+70 48,2 4092,3 250 0,206 – 0,443 302 316
3×185+95 53,8 5044,1 250 0,164 – 0,320 342 365
3×240+95 58,5 5931,2 250 0,125 – 0,320 397 430
3×240+120 59,4 6065,4 250 0,125 – 0,253 397 430
3×300+150 66,0 7424,9 250 0,100 – 0,206 454 506
3×400+185 75,0 10381,3 250 0,0778 – 0,164 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+2×10 21,4 760,2 1000 1,91 – 3,08 – –
3×25+2×16 25,0 1023,0 1000 1,20 – 1,91 113 104
3×35+2×16 26,7 1184,8 1000 0,868 – 1,91 136 128
3×50+2×25 31,6 1944,1 1000 0,641 – 1,20 159 152
3×70+2×35 36,8 2529,2 500 0,443 – 0,868 197 194
3×95+2×50 41,0 3140,1 500 0,320 – 0,641 236 239
3×120+2×70 46,5 3922,7 500 0,253 – 0,443 269 278
3×150+2×70 50,7 4495,0 250 0,206 – 0,443 302 316
3×185+2×95 56,6 5546,2 250 0,164 – 0,320 342 365
3×240+2×120 62,5 6679,4 250 0,125 – 0,253 397 430
3×300+2×150 70,4 9147,5 250 0,100 – 0,206 454 506
3×400+2×185 79,1 10409,4 250 0,0778 – 0,164 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 18,4 561,7 1000 3,08 – –
4×16 20,7 715,4 1000 1,91 – –
4×25 24,5 975,2 1000 1,20 113 104
4×35 27,1 1211,8 1000 0,868 136 128
4×50 31,1 1558,2 1000 0,641 159 152
4×70 37,2 2569,6 500 0,443 197 194
4×95 41,1 3149,3 500 0,320 236 239
4×120 45,5 3807,4 500 0,253 269 278
4×150 51,7 4659,7 250 0,206 302 316
4×185 57,7 5714,6 250 0,164 342 365
4×240 63,9 6892,9 250 0,125 397 430
4×300 71,0 8552,4 250 0,100 454 506
4×400 80,4 11809,5 250 0,0778 520 575
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 19,8 653,2 1000 3,08 – –
5×16 22,4 844,0 1000 1,91 – –
5×25 26,7 1169,9 1000 1,20 113 104
5×35 29,7 1476,0 1000 0,868 136 128
5×50 34,8 2342,5 500 0,641 159 152
5×70 40,8 3084,2 500 0,443 197 194
5×95 45,6 3876,8 500 0,320 236 239
5×120 50,1 4620,0 250 0,253 269 278
5×150 57,4 5782,4 250 0,206 302 316
5×185 63,6 6994,4 250 0,164 342 365
5×240 70,5 8480,4 250 0,125 397 430
5×300 79,1 11600,4 250 0,100 454 506
5×400 88,8 14488,4 250 0,0778 520 575
Note :
Current carrying capacities are valid at 30°C ambient temperature.
