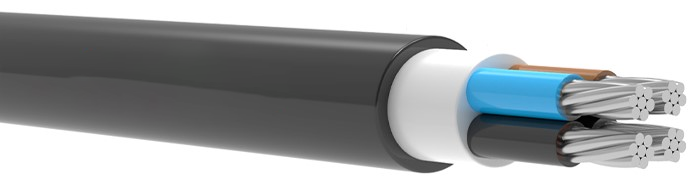

NA2X2Y

NA2X2Y

NA2X2Y

Category:

tds
Code
NA2X2Y             AL/XLPE/PVC/HDPE
Voltage Rating
0.6 / 1 kV AC
Standards
IEC 60502-1 / SI 1516.1 / VDE 0276 – 603
IEC 60228 Conductor
Conductor
Stranded Aluminum Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
PVC Filler
Sheath
HDPE (High Density Polyethylene) – UV Resistance
Waterproof ACC. AD8
Technical Data
Max. Operating Temperature : 90°C
Short  Circuit  Temperature : 250°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
For installation indoors and outdoors, in cable ducts, underground , in power or switching stations,local energy
distributions, industrial plants, where there is no risk of mechanical damage.Suitable for comparatively high
 maximum permissible conductor temperature.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 7,9 72,1 1000 3,08 – –
1×16 8,9 96,0 1000 1,91 – –
1×25 10,5 133,4 1000 1,20 114 106
1×35 11,5 171,0 1000 0,868 136 130
1×50 12,8 212,1 1000 0,641 162 161
1×70 15,0 283,7 1000 0,443 199 204
1×95 16,6 375,7 1000 0,320 238 252
1×120 18,9 456,0 1000 0,253 272 295
1×150 20,9 568,6 1000 0,206 305 339
1×185 23,2 711,0 1000 0,164 347 395
1×240 25,7 887,9 1000 0,125 404 472
1×300 28,5 1123,1 1000 0,100 457 547
1×400 33,4 1462,9 500 0,0778 525 643
1×500 37,3 1820,6 500 0,0605 601 754
1×630 42,0 2277,0 500 0,0469 687 882
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 14,8 273,7 1000 3,08 – –
2×16 16,8 364,7 1000 1,91 – –
2×25 19,9 524,7 1000 1,20 112 102
2×35 22,2 664,7 1000 0,868 135 126
2×50 25,1 852,7 1000 0,641 158 149
2×70 29,8 1184,8 1000 0,443 196 191
2×95 33,0 1505,9 1000 0,320 234 234
2×120 37,9 1881,8 1000 0,253 268 273
2×150 41,8 2370,8 1000 0,206 300 311
2×185 46,9 2998,8 500 0,164 342 360
2×240 52,0 3700,0 500 0,125 398 427
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×10 15,6 309,0 1000 3,08 – –
3×16 17,7 420,5 1000 1,91 – –
3×25 21,1 612,3 1000 1,20 112 102
3×35 23,6 746,3 1000 0,868 135 126
3×50 26,8 930,7 1000 0,641 158 149
3×70 31,9 1319,1 1000 0,443 196 191
3×95 35,3 1693,9 1000 0,320 234 234
3×120 40,6 2118,0 1000 0,253 268 273
3×150 44,9 2637,2 1000 0,206 300 311
3×185 50,3 3256,0 500 0,164 342 360
3×240 55,8 3909,3 500 0,125 398 427
3×300 65,2 5021,6 500 0,100 457 507
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 18,7 467,0 1000 1,91 – 3,08 – –
3×25+16 22,2 634,3 1000 1,20 – 1,91 112 102
3×35+16 24,3 797,2 1000 0,868 – 1,91 135 126
3×50+25 27,9 1015,0 1000 0,641 – 1,20 158 149
3×70+35 32,9 1394,6 1000 0,443 – 0,868 196 191
3×95+50 36,8 1813,0 1000 0,320 – 0,641 234 234
3×120+70 42,6 2253,5 500 0,253 – 0,443 268 273
3×150+70 46,2 2782,8 500 0,206 – 0,443 300 311
3×185+95 51,7 3575,8 500 0,164 – 0,320 342 360
3×240+120 57,3 4380,0 500 0,125 – 0,253 398 427
3×300+150 66,5 5439,6 250 0,100 – 0,206 457 507
3×400+185 74,7 7222,7 250 0,0778 – 0,164 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 17,0 357,7 1000 3,08 – –
4×16 19,3 482,1 1000 1,91 – –
4×25 23,1 712,9 1000 1,20 112 102
4×35 25,8 897,6 1000 0,868 135 126
4×50 29,4 1122,4 1000 0,641 158 149
4×70 35,2 1579,3 500 0,443 196 191
4×95 39,1 2040,7 500 0,320 234 234
4×120 45,0 2538,6 500 0,253 268 273
4×150 49,8 3184,7 250 0,206 300 311
4×185 55,8 4021,1 250 0,164 342 360
4×240 61,9 4827,4 250 0,125 398 427
4×300 72,0 6247,5 250 0,100 457 507
4×400 81,1 8215,4 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 19,4 528,3 1000 3,08 – –
5×16 22,0 684,9 1000 1,91 – –
5×25 26,3 947,8 1000 1,20 112 102
5×35 29,2 1223,5 1000 0,868 135 126
5×50 33,3 1488,9 1000 0,641 158 149
5×70 39,3 1976,3 500 0,443 196 191
5×95 43,7 2612,2 500 0,320 234 234
5×120 49,8 3201,3 500 0,253 268 273
5×150 55,0 4084,7 250 0,206 300 311
5×185 61,7 5017,4 250 0,164 342 360
5×240 68,6 6161,8 250 0,125 398 427
5×300 79,7 7840,3 250 0,100 457 507
5×400 89,9 10261,9 250 0,0778 529 600
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×16+10 21,5 611,3 1000 1,91 – 3,08 – –
4×25+16 25,4 858,1 1000 1,20 – 1,91 112 102
4×35+16 27,7 1060,1 1000 0,868 – 1,91 135 126
4×50+25 31,9 1377,1 1000 0,641 – 1,20 158 149
4×70+35 37,3 1876,7 1000 0,443 – 0,868 196 191
4×95+50 41,6 2417,7 1000 0,320 – 0,641 234 234
4×120+70 48,1 3079,3 500 0,253 – 0,443 268 273
4×150+70 52,3 3720,2 500 0,206 – 0,443 300 311
4×185+95 58,6 4739,1 500 0,164 – 0,320 342 360
4×240+120 65,0 5872,4 500 0,125 – 0,253 398 427
4×300+150 75,4 7450,7 250 0,100 – 0,206 457 507
4×400+185 84,8 9565,2 250 0,0778 – 0,164 529 600
4×16+2,5 19,3 523,9 1000 1,91 – 7,41 – –
Note :
Current carrying capacities are valid at 30°C ambient temperature.
