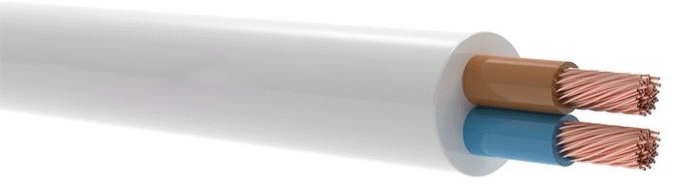

H05VV5-F

H05VV5-F

H05VV5-F

Category:

tds
Code
H05VV5-F      CU/PVC/PVC
Voltage Rating
300/500 V
Standards
EN 50525-2-51
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Flexible Copper Conductor (Class 5)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
–
Sheath
Oil Resistant PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec.)
Bending Radius : 6D ( D : Overall Diameter )
Test Voltage : 2 kV
Application
They are used in dry , damp and wet places , as measurement and control cables for internal installations where there is no
mechanical effects , in the machinery fast production lines , control equipments and computer systems .
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×0,50 5,5 46,8 100 39,0 – 3
2×0,75 6,1 62,1 100 26,0 – 6
2×1 6,5 71,2 100 19,5 – 10
2×1,5 7,4 93,6 100 13,3 – 16
2×2,5 8,9 134,9 100 7,98 – 25
2×4 10,3 198,1 100 4,95 – 32
2×6 11,9 272,3 100 3,30 – –
2×10 14,8 420,6 1000 1,91 – –
2×16 17,3 607,5 1000 1,21 – –
2×25 20,8 928,3 1000 0,780 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×0,50 5,9 55,3 100 39,0 – 3
3×0,75 6,5 74,2 100 26,0 – 6
3×1 6,9 85,9 100 19,5 – 10
3×1,5 8,1 117,7 100 13,3 – 16
3×2,5 9,6 170,6 100 7,98 – 25
3×4 10,9 234,9 100 4,95 – 32
3×6 12,6 333,5 100 3,30 – –
3×10 15,8 526,2 1000 1,91 – –
3×16 18,4 766,7 1000 1,21 – –
3×25 22,2 1186,3 1000 0,780 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×0,50 6,6 70,8 100 39,0 – 3
4×0,75 7,1 91,0 100 26,0 – 6
4×1 7,5 101,4 100 19,5 – 10
4×1,5 8,8 140,0 100 13,3 – 16
4×2,5 10,7 223,0 100 7,98 – 25
4×4 12,4 304,9 100 4,95 – 32
4×6 14,2 424,3 100 3,30 – –
4×10 17,9 687,0 1000 1,91 – –
4×16 20,2 964,5 1000 1,21 – –
4×25 24,8 1529,3 1000 0,780 – –
4×35 27,7 2011,8 1000 0,554 – –
4×50 32,5 2809,4 1000 0,386 – –
4×70 36,6 3765,3 1000 0,272 – –
4×95 42,3 4998,9 1000 0,206 – –
4×120 47,4 5878,0 1000 0,161 – –
4×150 51,3 7319,6 1000 0,129 – –
4×185 57,5 9286,8 1000 0,106 – –
4×240 64,1 11648,1 1000 0,0801 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×0,50 7,2 84,8 100 39,0 – 3
5×0,75 7,9 108,3 100 26,0 – 6
5×1 8,4 126,4 100 19,5 – 10
5×1,5 9,8 174,1 100 13,3 – 16
5×2,5 11,7 262,2 100 7,98 – 25
5×4 13,9 383,7 100 4,95 – 32
5×6 15,4 515,2 100 3,30 – –
5×10 19,5 835,5 1000 1,91 – –
5×16 22,1 1180,2 1000 1,21 – –
5×25 27,2 1876,7 1000 0,780 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
6×0,50 8,0 104,0 1000 39,0 – 3
6×0,75 8,6 127,5 1000 26,0 – 6
6×1 9,3 154,6 1000 19,5 – 10
6×1,5 10,9 213,5 1000 13,3 – 16
6×2,5 13,0 322,2 1000 7,98 – 25
6×4 15,1 460,5 1000 4,95 – 32
6×6 16,8 620,7 1000 3,30 – –
6×10 21,3 1011,2 1000 1,91 – –
6×16 24,5 1456,0 1000 1,21 – –
6×25 30,1 2313,2 1000 0,780 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
7×0,50 8,1 97,2 1000 39,0 – 3
7×0,75 9,0 124,9 1000 26,0 – 6
7×1 9,4 147,4 1000 19,5 – 10
7×1,5 11,3 208,8 1000 13,3 – 16
7×2,5 13,6 315,7 1000 7,98 – 25
7×4 15,3 447,4 1000 4,95 – 32
7×6 17,0 610,7 1000 3,30 – –
7×10 21,5 994,0 1000 1,91 – –
7×16 24,9 1448,3 1000 1,21 – –
7×25 30,8 2328,4 1000 0,780 – –
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
8×0,50 8,5 108,4 1000 39,0 – 3
8×0,75 9,4 138,5 1000 26,0 – 6
8×1 9,9 164,9 1000 19,5 – 10
8×1,5 11,8 233,7 1000 13,3 – 16
8×2,5 14,1 354,3 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
9×0,50 9,2 124,2 1000 39,0 – 3
9×0,75 9,8 153,9 1000 26,0 – 6
9×1 10,6 187,8 1000 19,5 – 10
9×1,5 12,6 264,8 1000 13,3 – 16
9×2,5 15,2 408,3 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
10×0,50 9,5 135,4 1000 39,0 – 3
10×0,75 10,5 173,6 1000 26,0 – 6
10×1 11,1 205,4 1000 19,5 – 10
10×1,5 13,1 289,7 1000 13,3 – 16
10×2,5 15,8 447,3 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
12×0,50 10,5 162,7 1000 39,0 – 3
12×0,75 11,2 202,1 1000 26,0 – 6
12×1 12,1 246,1 1000 19,5 – 10
12×1,5 14,1 338,4 1000 13,3 – 16
12×2,5 17,0 523,9 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
14×0,50 11,1 184,7 1000 39,0 – 3
14×0,75 12,0 230,4 1000 26,0 – 6
14×1 13,1 287,4 1000 19,5 – 10
14×1,5 15,4 402,4 1000 13,3 – 16
14×2,5 18,8 628,4 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
15×0,50 11,4 195,6 1000 39,0 – 3
15×0,75 12,7 257,2 1000 26,0 – 6
15×1 13,4 304,7 1000 19,5 – 10
15×1,5 15,9 426,9 1000 13,3 – 16
15×2,5 19,3 666,9 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
16×0,50 11,7 206,6 1000 39,0 – 3
16×0,75 13,0 271,5 1000 26,0 – 6
16×1 13,8 322,0 1000 19,5 – 10
16×1,5 16,3 451,2 1000 13,3 – 16
16×2,5 19,8 705,5 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
18×0,50 12,5 234,5 1000 39,0 – 3
18×0,75 13,7 299,9 1000 26,0 – 6
18×1 14,5 356,5 1000 19,5 – 10
18×1,5 17,1 499,7 1000 13,3 – 16
18×2,5 20,8 782,1 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
19×0,50 13,0 251,9 1000 39,0 – 3
19×0,75 14,0 313,9 1000 26,0 – 6
19×1 15,2 388,9 1000 19,5 – 10
19×1,5 17,5 523,7 1000 13,3 – 16
19×2,5 21,3 820,0 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
20×0,50 13,3 262,8 1000 39,0 – 3
20×0,75 14,5 335,4 1000 26,0 – 6
20×1 15,5 406,2 1000 19,5 – 10
20×1,5 18,5 575,6 1000 13,3 – 16
20×2,5 21,7 858,0 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
24×0,50 14,5 313,6 1000 39,0 – 3
24×0,75 15,8 399,7 1000 26,0 – 6
24×1 16,7 475,1 1000 19,5 – 10
24×1,5 19,9 673,0 1000 13,3 – 16
24×2,5 23,9 1033,0 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
25×0,50 14,7 323,3 1000 39,0 – 3
25×0,75 16,1 412,3 1000 26,0 – 6
25×1 17,0 490,6 1000 19,5 – 10
25×1,5 20,2 694,9 1000 13,3 – 16
25×2,5 24,3 1067,8 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
27×0,50 15,2 346,3 1000 39,0 – 3
27×0,75 16,6 442,1 1000 26,0 – 6
27×1 17,6 526,5 1000 19,5 – 10
27×1,5 20,9 745,6 1000 13,3 – 16
27×2,5 25,3 1159,6 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
28×0,50 15,4 357,2 1000 39,0 – 3
28×0,75 16,8 456,1 1000 26,0 – 6
28×1 17,8 543,4 1000 19,5 – 10
28×1,5 21,2 769,6 1000 13,3 – 16
28×2,5 25,7 1197,5 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
30×0,50 16,1 386,8 1000 39,0 – 3
30×0,75 17,3 483,9 1000 26,0 – 6
30×1 18,9 605,8 1000 19,5 – 10
30×1,5 21,8 817,4 1000 13,3 – 16
30×2,5 26,4 1272,9 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
32×0,50 16,5 408,5 1000 39,0 – 3
32×075 17,8 511,7 1000 26,0 – 6
32×1 19,5 640,4 1000 19,5 – 10
32×1,5 22,8 888,5 1000 13,3 – 16
32×2,5 27,4 1362,3 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
34×0,50 16,9 430,1 1000 39,0 – 3
34×0,75 18,8 567,9 1000 26,0 – 6
34×1 19,9 674,7 1000 19,5 – 10
34×1,5 23,4 936,5 1000 13,3 – 16
34×2,5 28,3 1452,0 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
36×0,50 17,3 451,4 1000 39,0 – 3
36×0,75 19,3 596,0 1000 26,0 – 6
36×1 20,4 708,9 1000 19,5 – 10
36×1,5 24,0 984,4 1000 13,3 – 16
36×2,5 28,9 1527,4 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
40×0,50 18,7 522,1 1000 39,0 – 3
40×0,75 20,1 652,1 1000 26,0 – 6
40×1 21,3 776,9 1000 19,5 – 10
40×1,5 25,2 1092,5 1000 13,3 – 16
40×2,5 30,3 1677,5 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
48×0,50 20,1 608,9 1000 39,0 – 3
48×0,75 21,7 763,5 1000 26,0 – 6
48×1 23,2 923,9 1000 19,5 – 10
48×1,5 27,5 1297,1 1000 13,3 – 16
48×2,5 32,9 1993,1 1000 7,98 – 25
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
60×0,50 22,1 736,8 1000 39,0 – 3
60×0,75 24,2 952,7 1000 26,0 – 6
60×1 25,9 1151,6 1000 19,5 – 10
60×1,5 30,6 1612,0 1000 13,3 – 16
60×2,5 36,2 2438,2 1000 7,98 – 25
Note :
Current carrying capacities are valid at 30°C ambient temperature.
