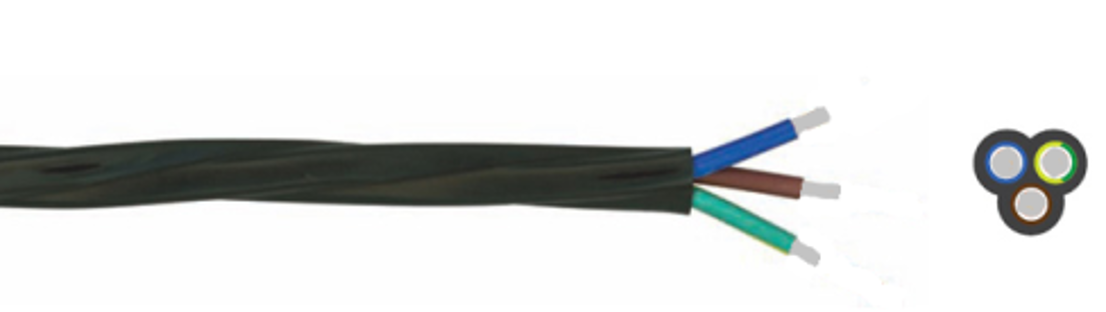

CABT

CABT

CABT

Category:

tds
Code
CABT            AL/PVC/PVC
Voltage Rating
0.6/1 kV
Standards
TS IEC 60502-1
IEC 60228 Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2 Flame Retardant
Conductor
Solid Aluminum Conductor (Class 1)
Stranded Aluminum Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
–
Armour
–
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature : 70°C
Short  Circuit  Temperature : 160°C (max.5 sec)
Bending Radius : 12D ( D : Overall Diameter )
Test Voltage : 3,5 kV
Application:
It is used as energy, mains and lighting cable, in cable ducts outside, underground, where there is no risk of mechanical damage.
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
1×10 8,5 107,8 1000 3,08 – –
1×16 9,5 136,9 1000 1,91 – –
1×25 11,1 188,0 1000 1,20 106 87
1×35 12,1 230,5 1000 0,868 127 107
1×50 13,7 280,3 1000 0,641 151 131
1×70 15,7 366,5 1000 0,443 185 166
1×95 17,7 478,6 1000 0,320 222 205
1×120 19,2 578,2 1000 0,253 253 239
1×150 21,7 708,9 1000 0,206 284 273
1×185 24,0 874,8 1000 0,164 322 317
1×240 26,8 1101,7 1000 0,125 375 378
1×300 29,8 1415,2 1000 0,100 425 437
1×400 33,4 1797,3 1000 0,0778 487 513
1×500 37,1 2205,0 500 0,0605 558 600
1×63* 15,7 363,1 1000 0,456 151 131
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
2×10 15,0 234,5 1000 3,08 – –
2×16 17,0 297,8 1000 1,91 – –
2×25 20,1 407,3 1000 1,20 102 82
2×35 22,2 497,8 1000 0,868 123 100
2×50 25,3 605,2 1000 0,641 144 119
2×70 29,3 803,3 1000 0,443 179 152
2×95 33,4 1038,5 1000 0,320 215 186
2×120 36,3 1245,4 1000 0,253 245 216
2×150 41,4 1565,4 1000 0,206 275 246
2×185 46,0 1916,4 1000 0,164 313 285
2×240 51,5 2419,4 500 0,125 364 338
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×6 re * 13,9 229,3 1000 4,74 – –
3×10 15,9 297,1 1000 3,08 – –
3×16 18,0 383,4 1000 1,91 – –
3×25 21,4 535,8 1000 1,20 102 82
3×35 23,7 663,5 1000 0,868 123 100
3×50 27,2 811,2 1000 0,641 144 119
3×70 31,5 1103,3 1000 0,443 179 152
3×95 35,9 1434,7 1000 0,320 215 186
3×120 39,1 1726,4 1000 0,253 245 216
3×150 44,6 2170,1 500 0,206 275 246
3×185 49,6 2691,0 500 0,164 313 285
3×240 55,5 3402,7 500 0,125 364 338
3×300 62,0 4381,1 250 0,100 419 400
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
3×16+10 19,2 449,1 1000 1,91 – 3,08 – –
3×25+16 22,6 623,6 1000 1,20 – 1,91 102 82
3×35+16 24,5 747,6 1000 0,868 – 1,91 123 100
3×50+25 28,5 955,4 1000 0,641 – 1,20 144 119
3×70+35 32,8 1268,0 1000 0,443 – 0,868 179 152
3×95+50 37,6 1662,1 1000 0,320 – 0,641 215 186
3×120+70 41,4 2038,2 500 0,253 – 0,443 245 216
3×150+70 46,0 2452,3 500 0,206 – 0,443 275 246
3×185+95 51,5 3070,2 500 0,164 – 0,320 313 285
3×240+120 57,3 3862,5 250 0,125 – 0,253 364 338
3×300+150 64,3 4963,4 250 0,100 – 0,206 419 400
3×400+185 72,2 6337,8 250 0,0778 – 0,164 484 472
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
4×10 17,4 365,6 1000 3,08 – –
4×16 19,8 476,9 1000 1,91 – –
4×25 23,6 673,2 1000 1,20 102 82
4×35 26,1 838,1 1000 0,868 123 100
4×50 30,2 1045,3 1000 0,641 144 119
4×70 35,1 1420,7 1000 0,443 179 152
4×95 40,0 1851,9 1000 0,320 215 186
4×120 43,5 2255,2 500 0,253 245 216
4×150 49,7 2829,8 500 0,206 275 246
4×185 55,3 3477,5 500 0,164 313 285
4×240 62,0 4433,0 250 0,125 364 338
4×300 69,2 5713,6 250 0,100 419 400
4×400 77,9 7315,3 250 0,0778 484 472
Nominal Cross Section Overall Diameter Net Weight Delivery Length Resistance at 20°C Current Carrying Capacity
(mm²) (mm) (kg/km) (m) (ohm/km) In Ground at 20°C In Air at 30°C
5×10 19,0 475,8 1000 3,08 – –
5×16 21,7 626,9 1000 1,91 – –
5×25 25,9 895,8 1000 1,20 102 82
5×35 28,8 1136,4 1000 0,868 123 100
5×50 33,5 1429,1 1000 0,641 144 119
5×70 38,9 1944,9 500 0,443 179 152
5×95 44,4 2565,2 500 0,320 215 186
5×120 48,3 3085,2 500 0,253 245 216
5×150 55,2 3888,5 500 0,206 275 246
5×185 61,5 4823,7 250 0,164 313 285
5×240 68,9 6136,4 250 0,125 364 338
5×300 77,0 7928,7 250 0,100 419 400
5×400 86,7 10134,8 250 0,0778 484 472
Note 1:
* Conductor resistance calculated theoretically.
Note 2:
Current carrying capacities are valid at 30°C ambient temperature.
