| Code : | |||||||||||||||

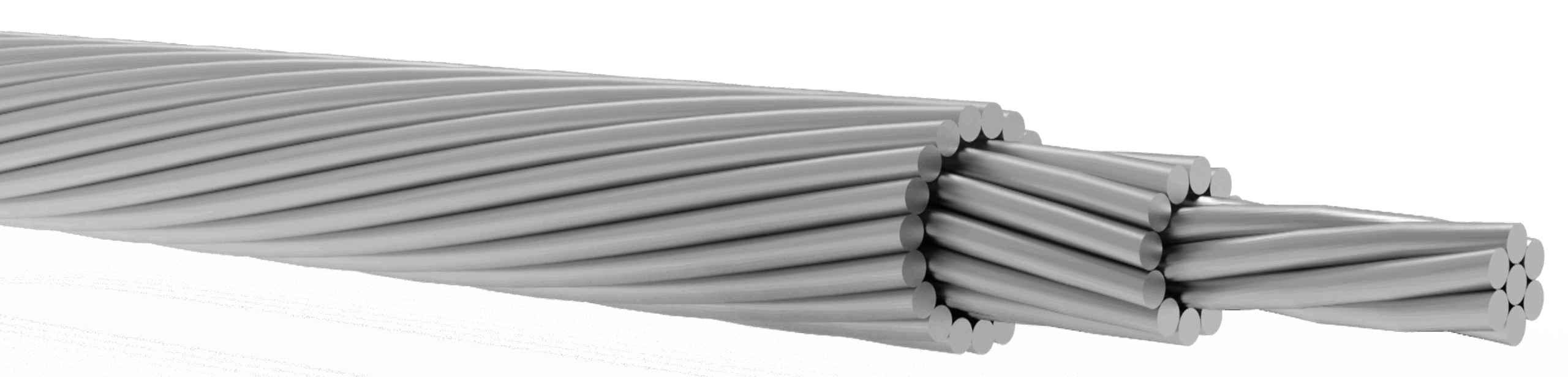

| ACSR | Aluminum Conductors Steel Reinforced | ||||||||||||||
| Standard : | |||||||||||||||
| EN 50182 & DIN 48201/5 & IEC 61089 | |||||||||||||||
| Conductor : | |||||||||||||||
| Steel Wire + Aluminium Wire | |||||||||||||||
| Application : | |||||||||||||||
| This conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, having purity of minimum 99.7% AAC is used mainly in urban areas and the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. These conductors are also used extensively in costal because it has a very high degree of corrosion resistance. |
|||||||||||||||
| CODE DISPLAY |
ACSR ( Aluminium Conductor Steel Reinforced, overhead line ) | ||||||||||||||
| RESISTANCE OF 20 ºC |
ALUMİNUM CROSS-SECTION |
STEEL CROSS-SECTION |
TOTAL CROSS-SECTION |
NUMBER OF WIRE | DIAMETERS OF WIRE | OVERALL DIAMETER | TENSILE STRENGHT |
CURRENT CARRYING CAPACITY |
NET WEIGHT (Approx.) |
||||||
| NEW CODE | OLD CODE | Ω/km | mm² | mm² | mm² | ALUMINUM | STEEL | ALUMINUM | STEEL | ALUMINUM | STEEL | kN | A | kg/km | |
| 15-AL1/3-ST1A | 16/2,5 | 1,8769 | 15,3 | 2,54 | 17,8 | 6 | 1 | 1,80 | 1,80 | 1,80 | 5,40 | 5,80 | 105 | 62,4 | |
| 24-AL1/4-ST1A | 25/4 | 1,2012 | 23,9 | 3,98 | 27,8 | 6 | 1 | 2,25 | 2,25 | 2,25 | 6,75 | 8,95 | 140 | 97,5 | |
| 34-AL1/6-ST1A | 35/6 | 0,8342 | 34,4 | 5,73 | 40,1 | 6 | 1 | 2,70 | 2,70 | 2,70 | 8,10 | 12,37 | 170 | 140,5 | |
| 44-AL1/32-ST1A | 44/32 | 0,6574 | 44,0 | 31,7 | 75,6 | 14 | 7 | 2,00 | 2,40 | 7,20 | 11,2 | 44,24 | – | 374,7 | |
| 48-AL1/8-ST1A | 50/8 | 0,5939 | 48,3 | 8,04 | 56,3 | 6 | 1 | 3,20 | 3,20 | 3,20 | 9,60 | 16,81 | 210 | 197,3 | |
| 51-AL1/30-ST1A | 50/30 | 0,5644 | 51,2 | 29,8 | 81,0 | 12 | 7 | 2,33 | 2,33 | 6,99 | 11,7 | 42,98 | – | 379,9 | |
| 70-AL1/11-ST1A | 70/12 | 0,4132 | 69,9 | 11,4 | 81,3 | 26 | 7 | 1,85 | 1,44 | 4,32 | 11,7 | 26,27 | 290 | 283,8 | |
| 94-AL1/15-ST1A | 95/15 | 0,3060 | 94,4 | 15,3 | 109,7 | 26 | 7 | 2,15 | 1,67 | 5,01 | 13,6 | 34,93 | 350 | 382,7 | |
| 97-AL1/56-ST1A | 95/55 | 0,2992 | 96,5 | 56,3 | 152,8 | 12 | 7 | 3,20 | 3,20 | 9,60 | 16,0 | 77,85 | – | 716,6 | |
| 106-AL1/76-ST1A | 105/75 | 0,2742 | 105,7 | 75,5 | 181,2 | 14 | 19 | 3,10 | 2,25 | 11,3 | 17,5 | 105,82 | – | 895,9 | |
| 122-AL1/20-ST1A | 120/20 | 0,2376 | 121,6 | 19,8 | 141,4 | 26 | 7 | 2,44 | 1,90 | 5,70 | 15,5 | 44,50 | 410 | 493,7 | |
| 122-AL1/71-ST1A | 120/70 | 0,2364 | 122,1 | 71,3 | 193,4 | 12 | 7 | 3,60 | 3,60 | 10,8 | 18,0 | 97,92 | – | 906,9 | |
| 128-AL1/30-ST1A | 125/30 | 0,2260 | 127,9 | 29,8 | 157,8 | 30 | 7 | 2,33 | 2,33 | 6,99 | 16,3 | 56,41 | 425 | 591,3 | |
| 149-AL1/24-ST1A | 150/25 | 0,1940 | 148,9 | 24,2 | 173,1 | 26 | 7 | 2,70 | 2,10 | 6,30 | 17,1 | 53,67 | 470 | 604,1 | |
| 172-AL1/40-ST1A | 170/40 | 0,1683 | 171,8 | 40,1 | 211,8 | 30 | 7 | 2,70 | 2,70 | 8,10 | 18,9 | 74,89 | 520 | 794,0 | |
| 184-AL1/30-ST1A | 185/30 | 0,1571 | 183,8 | 29,8 | 213,6 | 26 | 7 | 3,00 | 2,33 | 6,99 | 19,0 | 65,27 | 535 | 745,1 | |
| 209-AL1/34-ST1A | 210/35 | 0,1381 | 209,1 | 34,1 | 243,2 | 26 | 7 | 3,20 | 2,49 | 7,47 | 20,3 | 73,36 | 590 | 848,8 | |
| 212-AL1/49-ST1A | 210/50 | 0,1363 | 212,1 | 49,5 | 261,5 | 30 | 7 | 3,00 | 3,00 | 9,00 | 21,0 | 92,46 | 610 | 980,2 | |
| 231-AL1/30-ST1A | 230/30 | 0,1250 | 230,9 | 29,8 | 260,8 | 24 | 7 | 3,50 | 2,33 | 6,99 | 21,0 | 72,13 | 630 | 874,9 | |
| 243-AL1/39-ST1A | 240/40 | 0,1188 | 243,1 | 39,5 | 282,5 | 26 | 7 | 3,45 | 2,68 | 8,04 | 21,8 | 85,12 | 645 | 985,5 | |
| 264-AL1/34-ST1A | 265/35 | 0,1095 | 263,7 | 34,1 | 297,7 | 24 | 7 | 3,74 | 2,49 | 7,47 | 22,4 | 81,04 | 680 | 999,1 | |
| 304-AL1/49-ST1A | 300/50 | 0,0949 | 304,3 | 49,5 | 353,7 | 26 | 7 | 3,86 | 3,00 | 9,00 | 24,4 | 105,09 | 740 | 1234,1 | |
| 305-AL1/39-ST1A | 305/40 | 0,0949 | 304,6 | 39,5 | 344,1 | 54 | 7 | 2,68 | 2,68 | 8,04 | 24,1 | 96,80 | 740 | 1155,1 | |
| 339-AL1/30-ST1A | 340/30 | 0,0852 | 339,3 | 29,8 | 369,1 | 48 | 7 | 3,00 | 2,33 | 6,99 | 25,0 | 91,71 | 790 | 1173,4 | |
| 382-AL1/49-ST1A | 380/50 | 0,0758 | 381,7 | 49,5 | 431,2 | 54 | 7 | 3,00 | 3,00 | 9,00 | 27,0 | 121,30 | 840 | 1447,4 | |
| 386-AL1/34-ST1A | 385/35 | 0,0749 | 386,0 | 34,1 | 420,1 | 48 | 7 | 3,20 | 2,49 | 7,47 | 26,7 | 102,56 | 850 | 1336,1 | |
| 434-AL1/56-ST1A | 435/55 | 0,0666 | 434,3 | 56,3 | 490,6 | 54 | 7 | 3,20 | 3,20 | 9,60 | 28,8 | 133,59 | 900 | 1646,8 | |
| 449-AL1/39-ST1A | 450/40 | 0,0644 | 448,7 | 39,5 | 488,2 | 48 | 7 | 3,45 | 2,68 | 8,04 | 28,7 | 119,05 | 920 | 1551,9 | |
| 490-AL1/64-ST1A | 490/65 | 0,0590 | 490,3 | 63,6 | 553,8 | 54 | 7 | 3,40 | 3,40 | 10,2 | 30,6 | 185,81 | 960 | 1859,1 | |
| 494-AL1/34-ST1A | 495/35 | 0,0584 | 494,4 | 34,1 | 528,5 | 45 | 7 | 3,74 | 2,49 | 7,47 | 29,9 | 117,96 | 985 | 1634,4 | |
| 511-AL1/45-ST1A | 510/45 | 0,0566 | 510,5 | 45,3 | 555,8 | 48 | 7 | 3,68 | 2,87 | 8,61 | 30,7 | 133,31 | 995 | 1768,6 | |
| 550-AL1/71-ST1A | 550/70 | 0,0526 | 549,7 | 71,3 | 620,9 | 54 | 7 | 3,60 | 3,60 | 10,8 | 32,4 | 166,32 | 1020 | 2084,3 | |
| 562-AL1/49-ST1A | 560/50 | 0,0515 | 561,7 | 49,5 | 611,2 | 48 | 7 | 3,86 | 3,00 | 9,00 | 32,2 | 146,28 | 1040 | 1943,1 | |
| 571-AL1/39-ST1A | 570/40 | 0,0506 | 571,2 | 39,5 | 610,6 | 45 | 7 | 4,02 | 2,68 | 8,04 | 32,2 | 136,40 | 1050 | 1889,1 | |
| 653-AL1/45-ST1A | 650/45 | 0,0442 | 653,5 | 45,3 | 698,8 | 45 | 7 | 4,30 | 2,87 | 8,61 | 34,4 | 156,18 | 1120 | 2162,3 | |
| 679-AL1/86-ST1A | 680/85 | 0,0446 | 678,6 | 86,0 | 764,5 | 54 | 19 | 4,00 | 2,40 | 12,0 | 36,0 | 206,56 | 1150 | 2557,1 | |
| 1046-AL1/45-ST1A | 1045/45 | 0,0277 | 1045,6 | 45,3 | 1090,9 | 72 | 7 | 4,30 | 2,87 | 8,61 | 43,0 | 218,92 | 1580 | 3242,1 | |
